HARTING - 09 16 108 3001 - Heavy Duty Connector, 108+PE, Less Contacts, Han DD, Insert, 109 Contacts, 24B, Plug
- Product Range: Han DD Series
- Heavy Duty Connector Type: Insert
- No. of Contacts: 109 Contacts
- Rectangular Shell Size: 24B
- Gender: Plug
- Heavy Duty Contact Type: Crimp Pin - Contacts Not Supplied
- Current Rating: 10A
- SVHC: No SVHC (15-Jan-2018)
- Contact Termination: Crimp

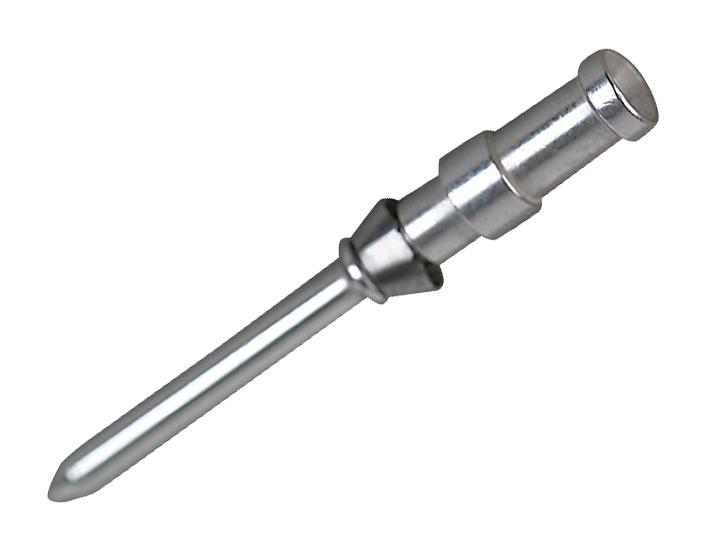

- For Use With: Han D Pin Crimp Contacts
- Insert Type: Signal
- No. of Contacts: 109Contacts
- No. of Positions: 109Ways
- No. of Rows: 6 Row
- No. of Rows: 6Rows
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Range: 24B
- Voltage Rating: 250V
- Voltage Rating VAC: 250V
- Wire Area Size Max: 2.5mm²
- Wire Area Size Min: 0.5mm²
- Working Voltage: 250V
