1-1658527-5 Socket, IDC, 50WAY Amp - Te Connectivity

AMP - TE CONNECTIVITYSKU:1-1658527-5 Bestelcode:1298784

Prijs:
Actie prijs€13,76

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (391 units)

Documenten en downloads

Omschrijving

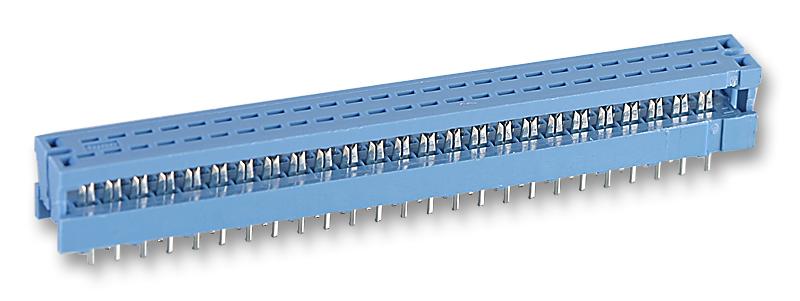

AMP - TE CONNECTIVITY - 1-1658527-5 - IDC Connector, IDC Receptacle, Female, 2.54 mm, 2 Row, 50 Contacts, Cable Mount

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 50Contacts
  • Gender: Receptacle
  • Product Range: 622 Series
  • Contact Termination Type: IDC / IDT
  • No. of Rows: 2Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Beryllium Copper
  • SVHC: No SVHC (15-Jan-2018)
  • Contact Current Rating: 1A
  • Flammability Rating: UL94V-0
  • IDC Cable Pitch: 0.05"
  • Insulation Resistance: 1Gohm
  • Material: Glass Feinforced Thermoplastic
  • No. of Mating Cycles: 200
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Polarisation Type: Bump/Clip
  • Row Pitch: 2.54mm
  • Withstand Voltage: 500V
