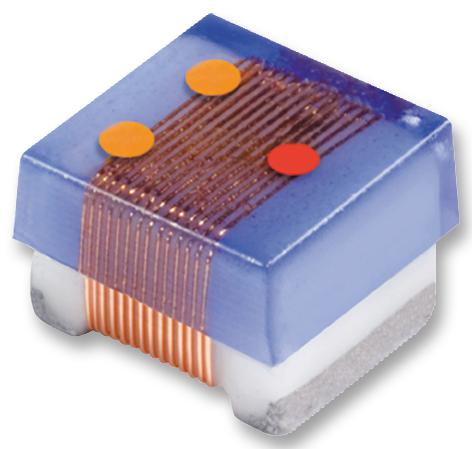

COILCRAFT - 1008CS-121XGLC - Wirewound Inductor, 120 nH, 0.63 ohm, 950 MHz, 650 mA, 1008 [2520 Metric], 1008CS
- Inductance: 120nH
- Product Range: 1008CS Series
- DC Current Rating: 650mA
- High Frequency Inductor Case: 1008 [2520 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 0.63ohm
- Inductance Tolerance: ± 2%
- Self Resonant Frequency Min: 950MHz
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Inductor Case Style: 1008 [2520 Metric]
