HONEYWELL - 111SM2-T - Microswitch, Subminiature, Simulated Roller Lever, SPDT, Solder, 5 A, 30 VDC
- Microswitch Type: Subminiature
- Microswitch Actuator: Simulated Roller Lever
- Contact Configuration: SPDT
- Switch Terminals: Solder
- Contact Current Max: 5A
- Contact Voltage DC Nom: 30VDC
- Product Range: SM Series
- Contact Voltage AC Nom: 250VAC
- Operating Force Max: 1.95N
- SVHC: No SVHC (07-Jul-2017)
- Actuator Type: Flexible Leaf with Roller
- Approval Bodies: CE, CSA, ENEC
- Approval Category: UL Recognised
- Contact Current AC: 5A
- Contact Current AC Max: 5A
- Contact Current DC Max: 5A
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 30V
- Differential Travel Max: 0.64mm
- External Depth: 6.35mm
- External Length / Height: 12.7mm
- External Width: 20.3mm
- Fixing Centres: 9.65mm
- Lever Length: 3.05mm
- Material: General Purpose Phenolic
- Operating Force: 1.95N
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Over Travel Min: 0.76mm
- Pre-travel: 5.56mm
- Release Force: 0.56N
- Switch Case: Phenolic
Verwachte verzendkosten
Bekijk ook eens

HONEYWELL
V7-7B17D8-201 Switch, Snap Action, SPDT Honeywell
Actie prijs€7,90
Op voorraad, 237 producten
HONEYWELL
11SM1 Microswitch, Pin Plunger, SPDT, 5A Honeywell
Actie prijs€21,81
Op voorraad, 226 producten
HONEYWELL

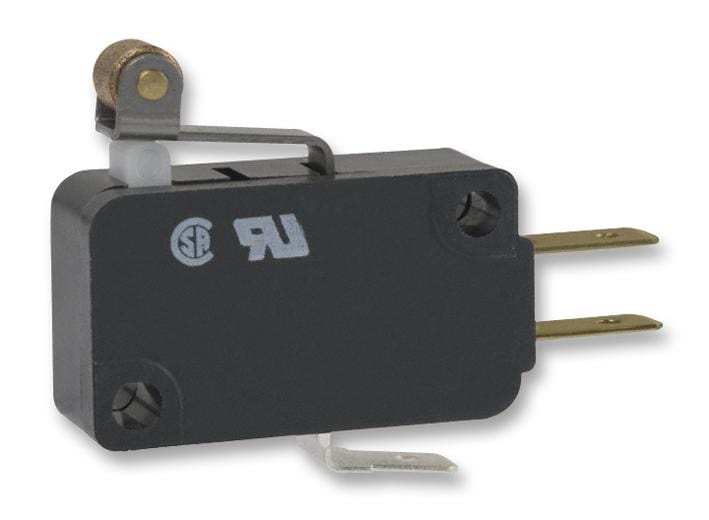

V7-1C13D8-201 Microswitch, Roller, SPDT, 277VAC, 15A Honeywell
Actie prijs€10,87
Op voorraad, 79 producten
HONEYWELL
V7-1C17E9-201 Microswitch, Roller, SPDT, 277VAC, 15A Honeywell
Actie prijs€9,84
Op voorraad, 57 producten
HONEYWELL

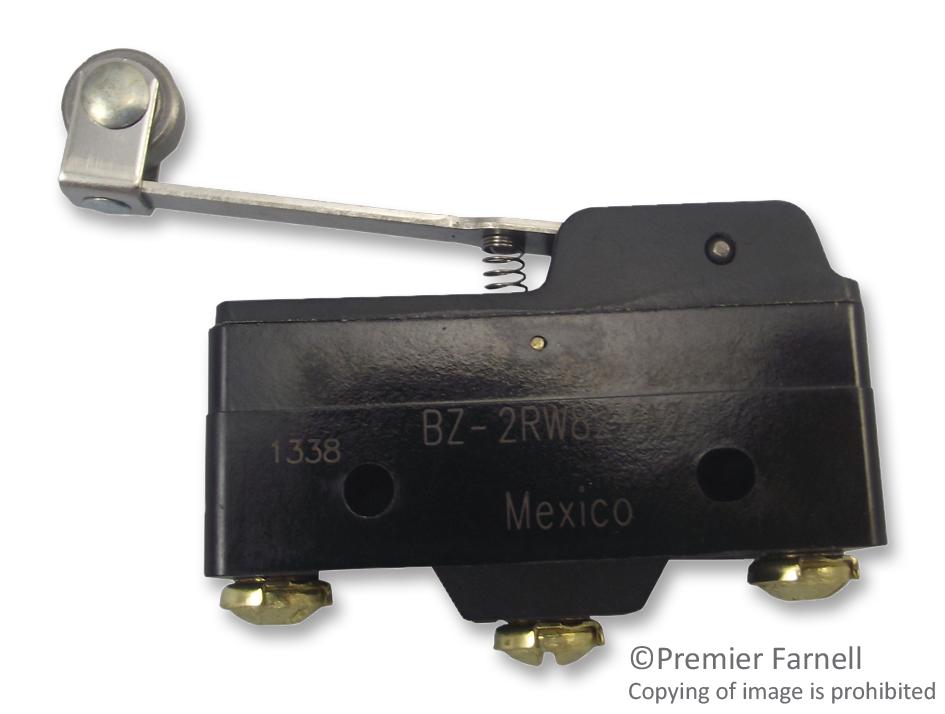

BZ-2RW82-A2 Microswitch, Roller, SPDT, 15A, 125VAC Honeywell
