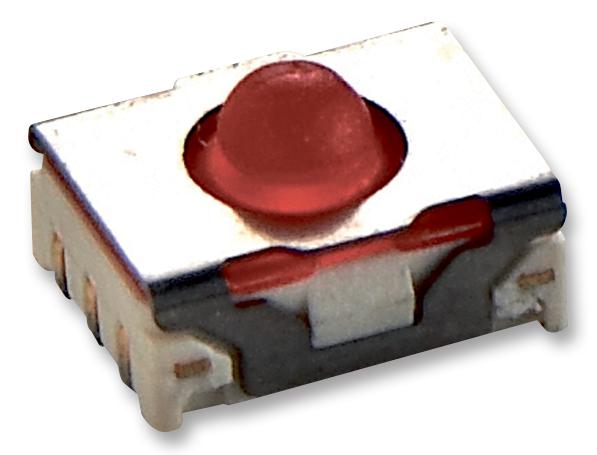

RAFI - 1.14.002.101/0000 - Tactile Switch, MICON 5, Top Actuated, Surface Mount, Round Button, 300 gf, 100mA at 35VDC
- Product Range: MICON 5 Series
- Actuator Orientation: Top Actuated
- Switch Mounting: SMD
- Actuator Style: Round Button
- Actuating Force: 300gf
- Contact Rating: 100mA at 35VDC
- Switch Dimensions (L x W): 6.4mm x 5.1mm
- IP Rating: -
- Illumination: Non Illuminated
- Actuation Type: Top
- Actuator / Cap Colour: Red
- Contact Configuration: SPST-NO
- Contact Current AC Max: 100mA
- Contact Current DC Max: 100mA
- Contact Current Max: 100mA
- Contact Voltage DC Nom: 35V
- Dielectric Strength VDC: 250VAC
- External Length / Height: 6.4mm
- External Width: 5.1mm
- Height: 3.85mm
- Insulation Resistance: 1000ohm
- Operating Force: 3N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Switch Terminals: SMD
- Switching Current DC Max: 100mA
- Switching Current DC Min: 0.01mA
- Voltage: 250V
