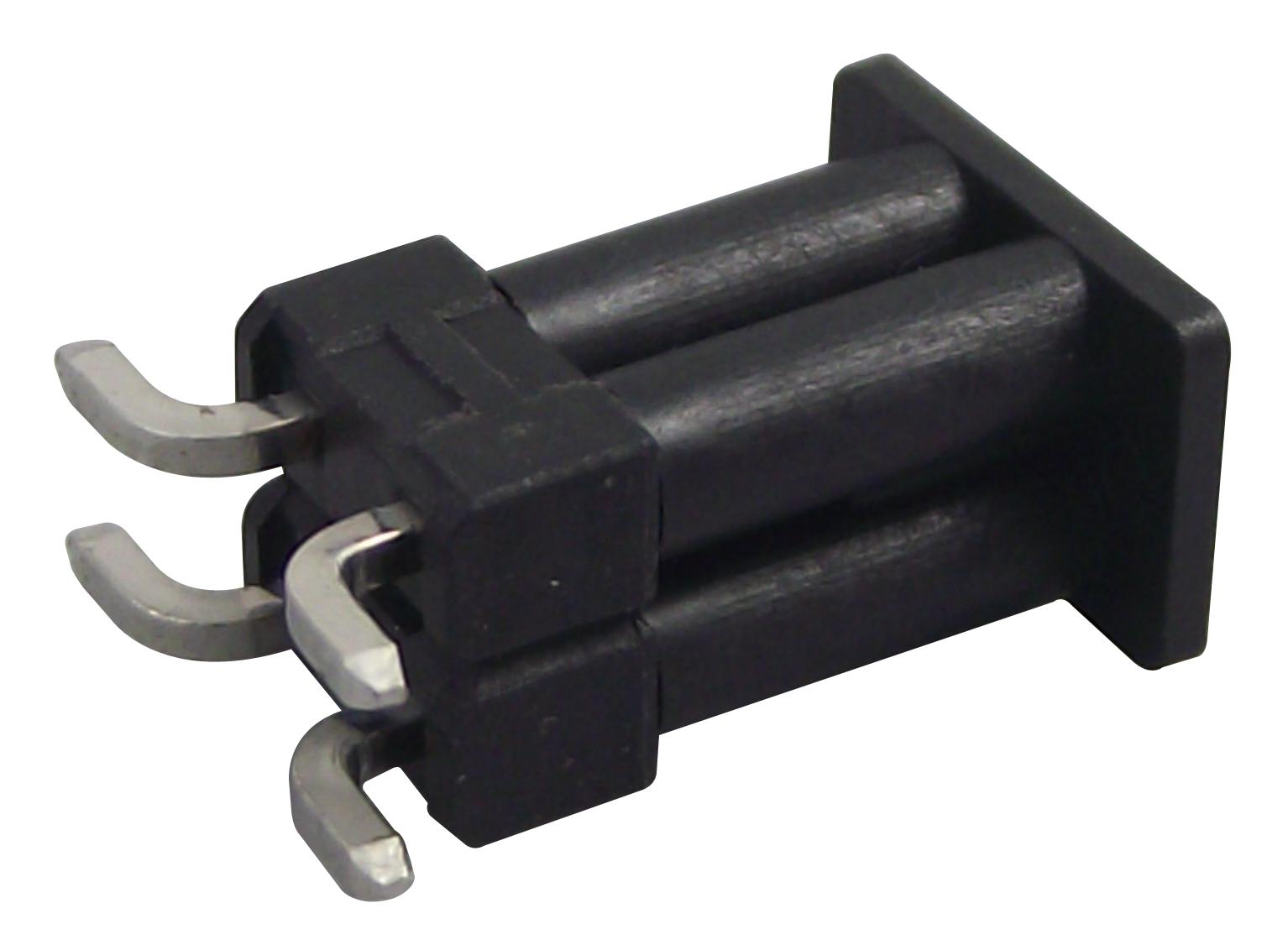

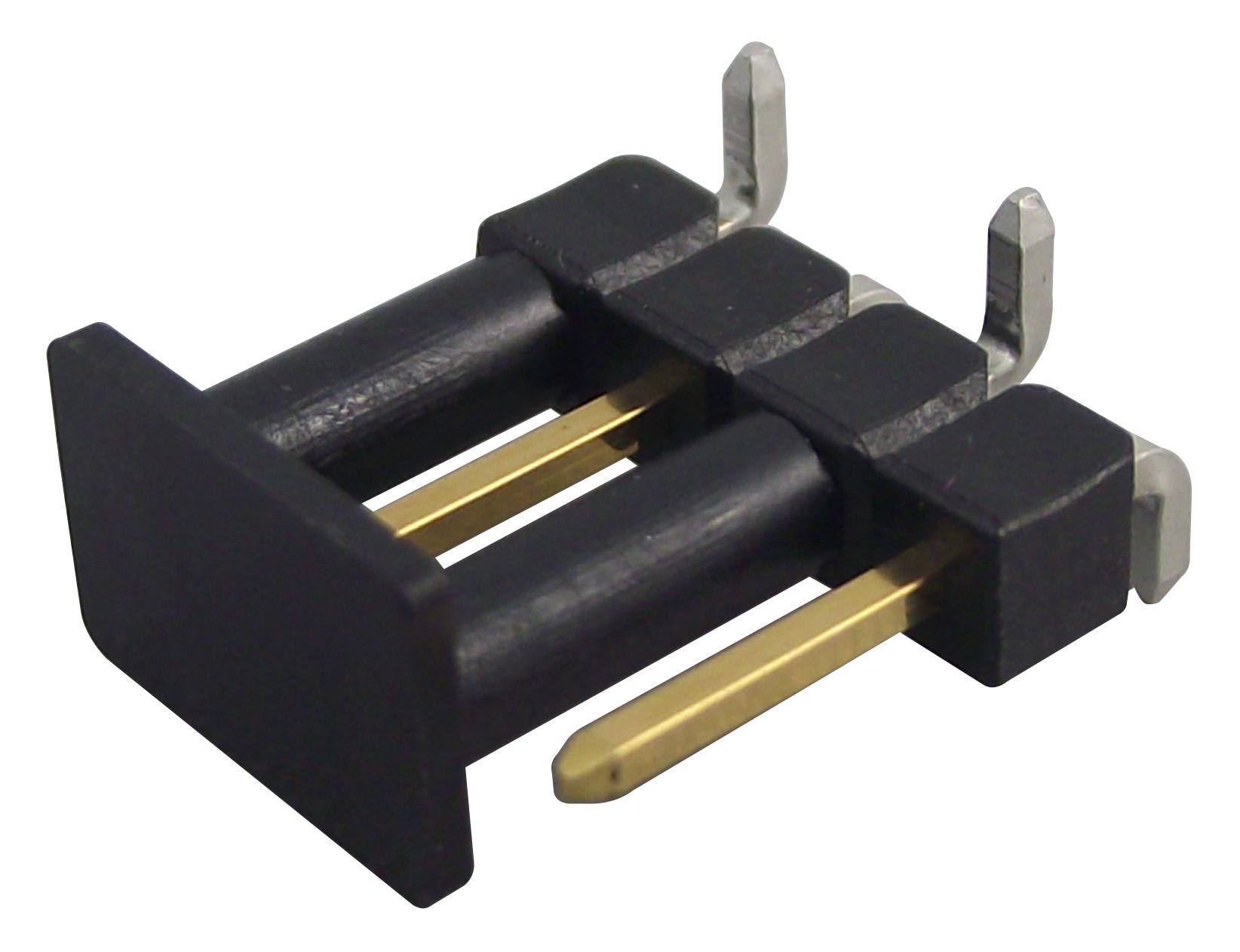

1241050-3 Connector, Header, 6Pos, 2Row, 2.54mm Amp - Te Connectivity

AMP - TE CONNECTIVITY - 1241050-3 - Pin Header, Board-to-Board, 2.54 mm, 2 Rows, 6 Contacts, Surface Mount Straight, AMPMODU MOD II

• Pitch Spacing: 2.54mm
• No. of Contacts: 6Contacts
• Gender: Header
• Product Range: AMPMODU MOD II Series
• Contact Termination Type: Surface Mount
• No. of Rows: 2Rows
• Contact Plating: Gold Plated Contacts
• Contact Material: Phosphor Bronze
• SVHC: No SVHC (15-Jan-2018)
• Approval Bodies: UL
• Contact Termination: Surface Mount Vertical
• Current Rating: 3A
• Insulation Resistance: 5000Mohm
• Operating Temperature Max: 105°C
• Operating Temperature Min: -65°C
• Termination Method: Solder
• Voltage Rating VAC: 250V
• Working Voltage: 250V
