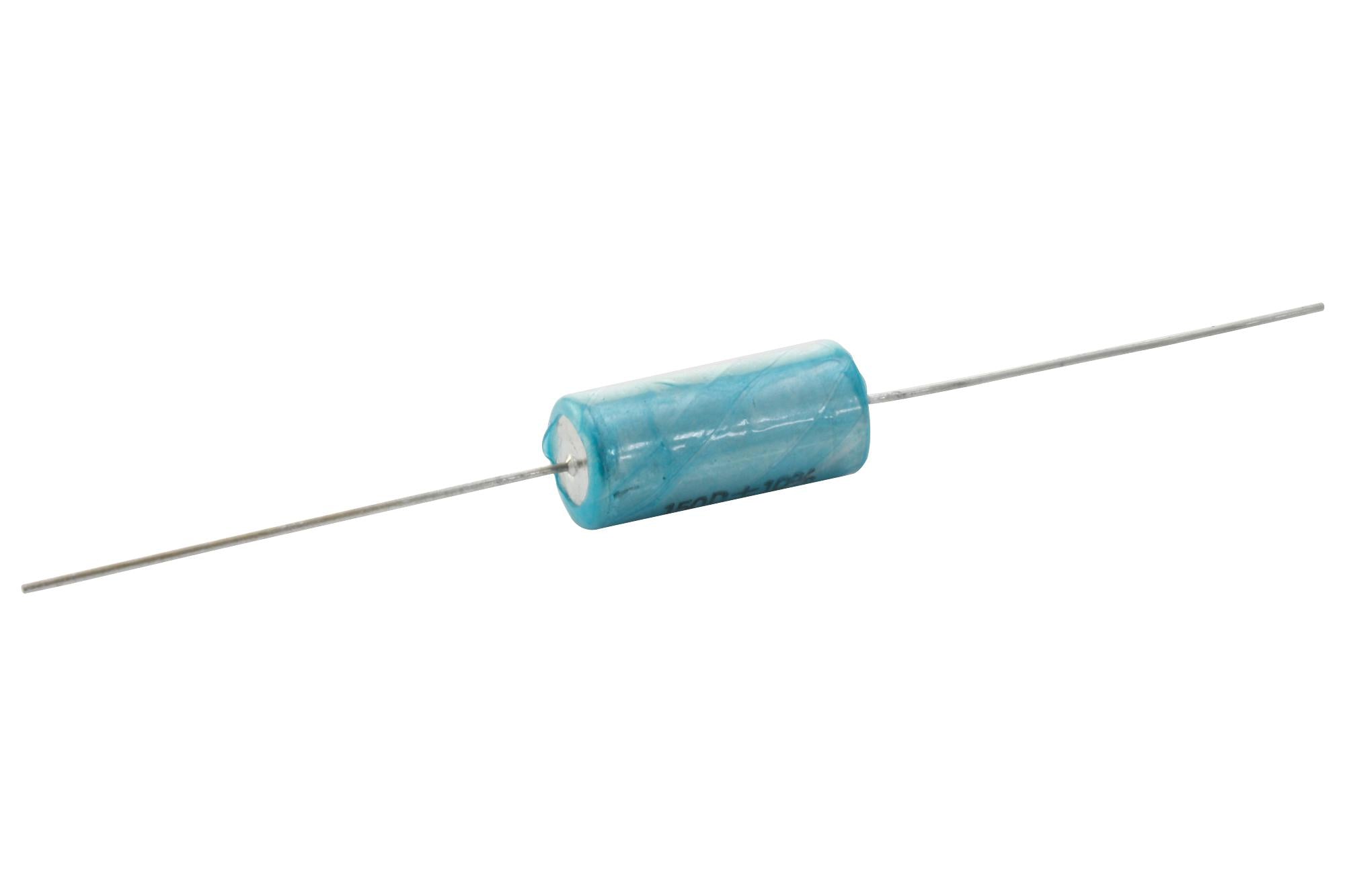

VISHAY - 150D226X9050S2BE3 - Tantalum Capacitor, TANTALEX®, 22 µF, 50 V, ± 10%, Axial Leaded
- Capacitance: 22µF
- Voltage Rating: 50V
- Product Range: 150D Series
- Capacitance Tolerance: ± 10%
- Capacitor Terminals: Axial Leaded
- Lead Spacing: -
- Operating Temperature Min: -55°C
- Operating Temperature Max: 85°C
- ESR: -
- SVHC: Lead (15-Jan-2019)
- Body Diameter: 8.92mm
- Capacitance Tolerance ±: ± 10%
- External Width: 19.96mm
- Lead Diameter: 0.64mm
- Lead Length: 38.1mm
- Leakage Current: 6µA
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +85°C
