Omschrijving

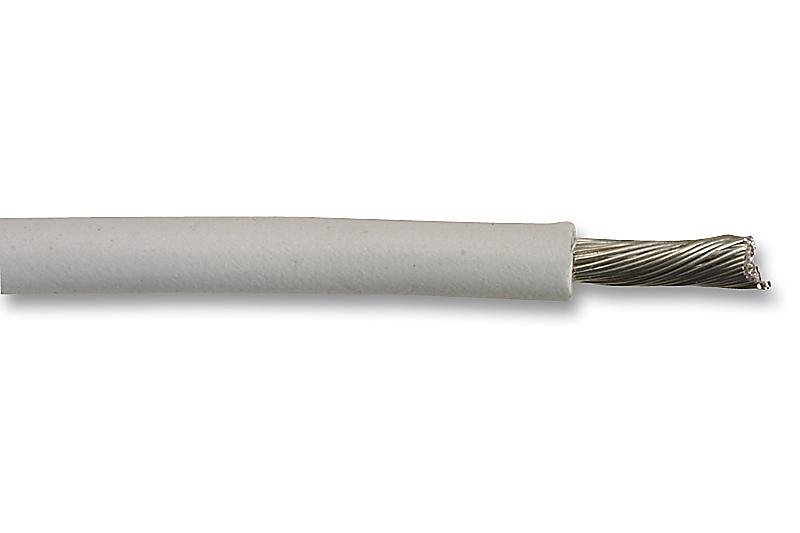

ALPHA WIRE - 1551 WH001 - Wire, Stranded, Hook Up MIL-W-76B Type MW, PVC, White, 22 AWG, 0.357 mm², 1000 ft, 304.8 m
- Jacket Material: PVC
- Jacket Colour: White
- Wire Gauge: 22AWG
- Conductor Area CSA: 0.357mm²
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 304.8m
- No. of Max Strands x Strand Size: 7 x 30AWG
- Voltage Rating: 1kV
- Conductor Material: Tinned Copper
- External Diameter: 1.63mm
- Approval Specification: MIL-W-76 B Type MW
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Conductor Make-up: 7 / 30AWG
- Outer Diameter: 1.63mm
- Wire Size: 22AWG
