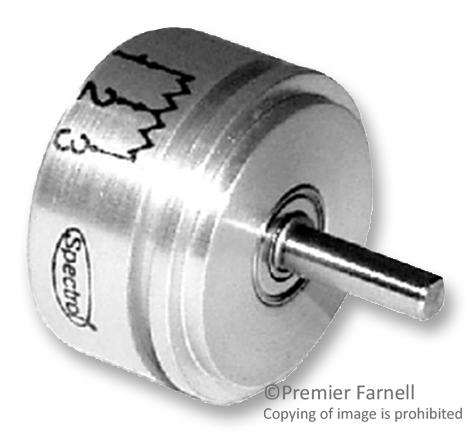

VISHAY - 157S202MB9002 - Rotary Potentiometer, Conductive Plastic, 2 kohm, 1 Turns, Linear, 1 W, ± 20%, 157
- Track Resistance: 2kohm
- No. of Turns: 1Turns
- Track Taper: Linear
- Power Rating: 1W
- Resistance Tolerance: ± 20%
- Product Range: 157 Series
- Potentiometer Mounting: Servo
- Shaft Diameter: 3.17mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 11.1mm
- Body Diameter: 22.22mm
- External Length / Height: 13.1mm
- Full Power Rating Temperature: 40°C
- Insulation Resistance: 1000Mohm
- Linearity, +: 0.5%
- Linearity, -: 0.5%
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Proof Voltage: 1000V
- Resistance: 2kohm
- Resistor Element Material: Conductive Plastic
- Rotation Mechanical Angle: 360°
- Rotational Life Cycles: 10000000
- Temperature Coeff. +: 600ppm/°C
- Temperature Coeff. -: 600ppm/°C
- Temperature Coefficient: ± 600ppm/°C
- Termination Type: Solder
- Tolerance +: 20%
- Tolerance -: 20%
