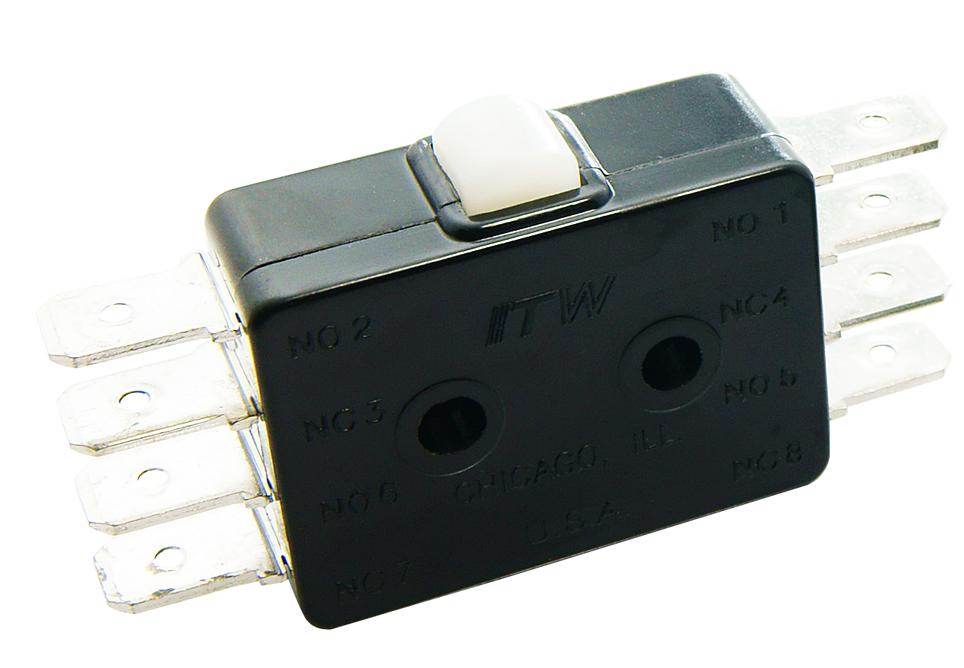

16-4044 Microswitch, Plunger, 10A ITW Switches

ITW SWITCHESSKU:16-4044 Bestelcode:2059022

Prijs:
Actie prijs€19,35

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1269 units)

Documenten en downloads

Omschrijving

ITW SWITCHES - 16-4044 - Microswitch, Snap Action, Plunger, SPDT, Solder, 10.1 A, 28 VDC

  • Microswitch Type: Snap Action
  • Microswitch Actuator: Plunger
  • Contact Configuration: SPDT
  • Switch Terminals: Solder
  • Contact Current Max: 10.1A
  • Contact Voltage DC Nom: 28VDC
  • Product Range: 16 Series
  • Contact Voltage AC Nom: 250VAC
  • Operating Force Max: 2.2N
  • SVHC: No SVHC (17-Dec-2015)
  • Actuation Type: Plunger
  • Actuator Type: Plunger
  • Approval Bodies: CSA, UL
  • Contact Current @ Contact Voltage AC Max: 10A
  • Contact Current @ Contact Voltage DC Min: 20mA
  • Contact Current AC: 10A
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 10A
  • Contact Resistance: 25mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 28V
  • Contact Voltage DC Min: 5VDC
  • Dielectric Strength VDC: 1000VAC
  • External Depth: 11.2mm
  • External Length / Height: 11.2mm
  • External Width: 17.95mm
  • IP / NEMA Rating: IP40
  • Insulation Resistance: 1Gohm
  • No. of Electrical Operations: 1000000
  • No. of Mechanical Operations: 1000000
  • Operating Force: 2.2N
  • Operating Temperature Max: 135°C
  • Operating Temperature Min: -55°C
