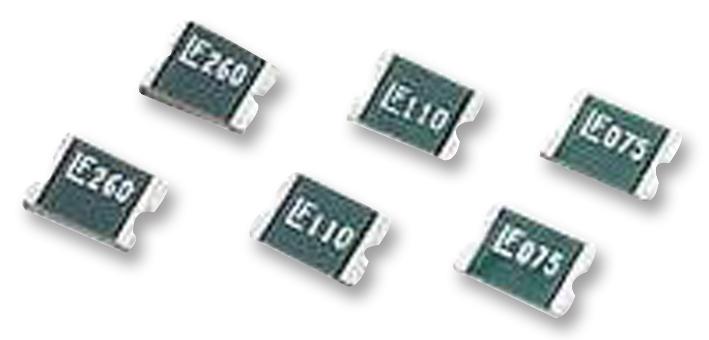

LITTELFUSE - 1812L035/30DR - Resettable Fuse, PPTC, 1812 (4532 Metric), POLYFUSE 1812L, 30 VDC, 350 mA, 750 mA, 0.15 s
- Thermistor Mounting: SMD
- Product Range: POLYFUSE 1812L Series
- Holding Current: 350mA
- Tripping Current: 750mA
- Voltage Rating: 30VDC
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- Carrying Current Max: 40A
- Initial Resistance Max: 1.7ohm
- Operating Voltage: 30VDC
- PTC Fuse Case Style: 1812 [4532 Metric]
