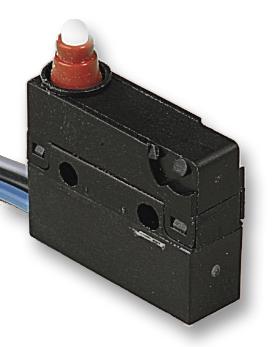

19N402 Microswitch, v4, Plunger ITW Switches

ITW SWITCHESSKU:19N402 Bestelcode:521840

Prijs:
Actie prijs€15,18

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (271 units)

Documenten en downloads

Omschrijving

ITW SWITCHES - 19N402 - Microswitch, Snap Action, Plunger, SPDT, Solder, 5 A, 28 VDC

  • Microswitch Type: Snap Action
  • Microswitch Actuator: Plunger
  • Contact Configuration: SPDT
  • Switch Terminals: Solder
  • Contact Current Max: 5A
  • Contact Voltage DC Nom: 28VDC
  • Product Range: 19N Series
  • Contact Voltage AC Nom: 250VAC
  • Operating Force Max: 2N
  • SVHC: No SVHC (17-Dec-2015)
  • Actuation Type: Plunger
  • Actuator Type: Plunger
  • Contact Current AC: 5A
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 3A
  • Contact Current Rating: 5A
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 28V
  • Differential Travel Max: 0.2mm
  • External Depth: 6.35mm
  • External Length / Height: 11.1mm
  • External Width: 19.9mm
  • Fixing Centres: 9.53mm
  • Flammability Rating: UL94V-0
  • IP / NEMA Rating: IP67
  • No. of Electrical Operations: 100000
  • No. of Mechanical Operations: 10000000
  • Operating Force: 2N
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Pre-travel: 1.2mm
  • Release Force: 0.27N
  • Switch Case: Nylon 4.6 (Polyamide 4.6)
  • Switch Operation: On-(On)
