Documenten en downloads
Omschrijving
ITW SWITCHES - 19N403L18 - Microswitch, Snap Action, Lever, SPDT, Solder, 5 A, 28 VDC
- Microswitch Type: Snap Action
- Microswitch Actuator: Lever
- Contact Configuration: SPDT
- Switch Terminals: Solder
- Contact Current Max: 5A
- Contact Voltage DC Nom: 28VDC
- Product Range: 19N Series
- Contact Voltage AC Nom: 250VAC
- Operating Force Max: 1.5N
- SVHC: No SVHC (17-Dec-2015)
- Actuation Type: Lever
- Actuator Type: Lever
- Approval Bodies: BEAB, VDE
- Contact Current AC: 5A
- Contact Current AC Max: 5A
- Contact Current DC Max: 3A
- Contact Current Rating: 5A
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 28V
- Differential Travel Max: 0.7mm
- External Depth: 6.35mm
- External Length / Height: 11.1mm
- External Width: 19.9mm
- Fixing Centres: 9.53mm
- Flammability Rating: UL94V-0
- IP / NEMA Rating: IP67
- Lever Length: 18mm
- No. of Electrical Operations: 100000
- No. of Mechanical Operations: 10000000
- Operating Force: 0.45N
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Pre-travel: 4.1mm
- Release Force: 0.08N
- Switch Case: Nylon 4.6 (Polyamide 4.6)
Verwachte verzendkosten
Bekijk ook eens

ZF ELECTRONICS

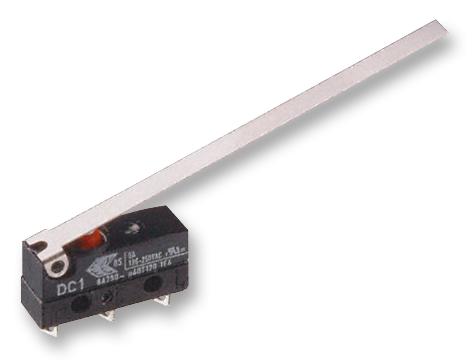

DC1C-A1LD Microswitch, SPDT, Long Lever ZF Electronics
Actie prijs€8,59
Op voorraad, 264 producten
MULTICOMP PRO
2AS4T2A1M7RE Switch, Toggle, SPDT, Mom-Off-Mom multicomp Pro
Actie prijs€4,62
Op voorraad, 35 producten
ZF ELECTRONICS
DC2C-A1LC Microswitch, SPDT, Med Lever ZF Electronics
Actie prijs€9,07
Op voorraad, 1137 producten
MULTICOMP PRO
SSM-003 Microswitch, SPDT, 0.5A, Metal Lever multicomp Pro
Actie prijs€1,81
Op voorraad, 1565 producten
OMRON

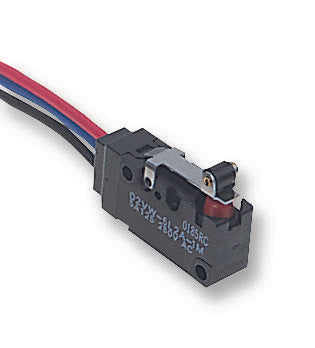

D2VW-5L2A-1m Microswitch, v3, Roller Lever Omron
