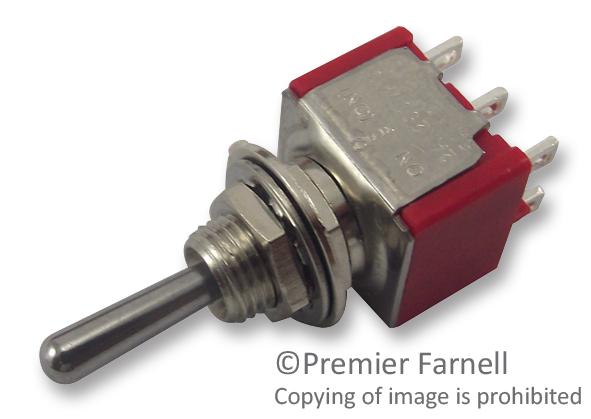

MULTICOMP PRO - 1MD6T1B5M1QE - Toggle Switch, On-On-On, DPDT, Non Illuminated, 1M, Panel Mount, 5 A
- Switch Operation: On-On-On
- Contact Configuration: DPDT
- Illumination: Non Illuminated
- Product Range: 1M Series
- Contact Current Max: 5A
- Switch Mounting: Panel
- Contact Voltage AC Nom: 120V
- Switch Terminals: Solder
- Contact Voltage DC Nom: 28V
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Bat
- Approval Category: UL Recognised
- Bush Thread Length: 8.89mm
- Contact Current AC: 2A
- Contact Current AC Max: 5A
- Contact Current DC Max: 5A
- Contact Resistance: 10mohm
- Contact Resistance Max: 100mohm
- Contact Voltage AC Max: 250VAC
- Contact Voltage DC Max: 28VDC
- External Depth: 11.43mm
- External Length / Height: 8.89mm
- External Width: 12.7mm
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- Lever Length: 10.41mm
- Material: DAP
- No. of Mechanical Operations: 40000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Switching Current AC Max: 5A
- Switching Current DC Max: 5A
- Tab Blade Thickness: 0.76mm
- Termination Method: Solder
- Thread Size: ¼ - 40 UNS-2A
