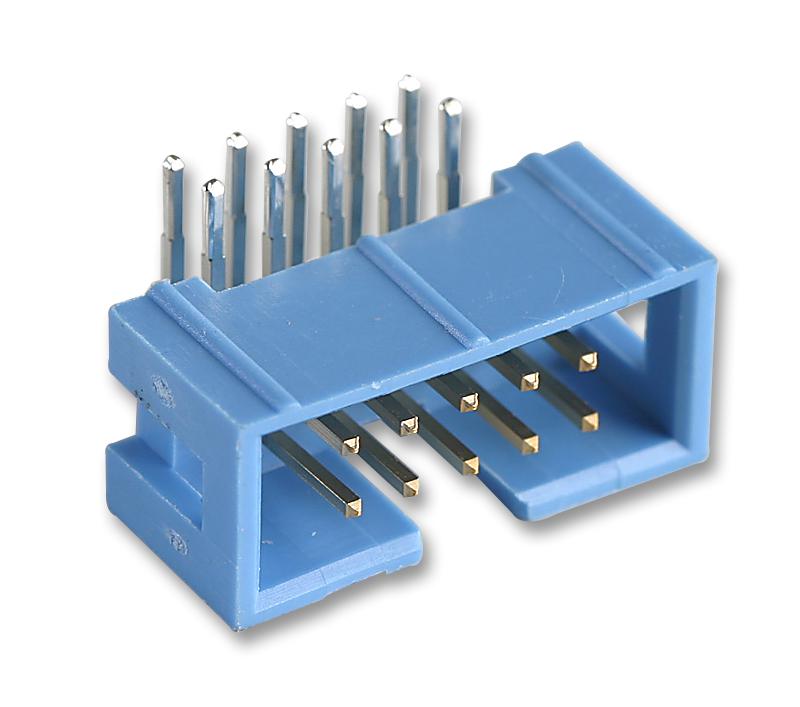

2-1761605-3 Header, R/A, 10WAY Amp - Te Connectivity

AMP - TE CONNECTIVITYSKU:2-1761605-3 Bestelcode:1298795

Prijs:
Actie prijs€12,82

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1280 units)

Documenten en downloads

Omschrijving

AMP - TE CONNECTIVITY - 2-1761605-3 - Pin Header, Right Angle, Wire-to-Board, 2.54 mm, 2 Rows, 10 Contacts, Through Hole Right Angle

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 10Contacts
  • Gender: Header
  • Product Range: AMP-LATCH Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 2Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (15-Jan-2019)
  • Current Rating: 1A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1Gohm
  • Material: Glass Reinforced Thermoplastic
  • No. of Mating Cycles: 200
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • PCB Hole Diameter: 0.9mm
  • Polarisation Type: Bump
  • Withstand Voltage: 500V
