Omschrijving

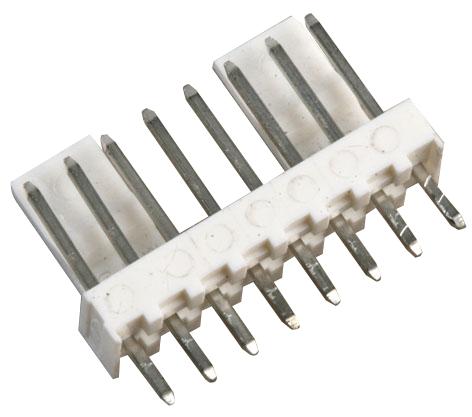

MOLEX - 22-27-2081 - Pin Header, Square Pin, With Friction Lock, Signal, Wire-to-Board, 2.54 mm, 1 Rows, 8 Contacts
- Pitch Spacing: 2.54mm
- No. of Contacts: 8Contacts
- Gender: Header
- Product Range: KK 254 6410 Series
- Contact Termination Type: Through Hole
- No. of Rows: 1Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Brass
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, UL
- Colour: White
- Contact Resistance: 20mohm
- Current Rating: 4A
- De-mating Force: 0.57N
- Dielectric Strength: 1500V/m
- Flammability Rating: UL94V-0
- Material: Nylon
- Mating Force: 2N
- Operating Temperature Max: 75°C
- Operating Temperature Min: 0°C
- PCB Hole Diameter: 1.02mm
- Voltage Rating VAC: 250V
- Working Voltage: 250V
