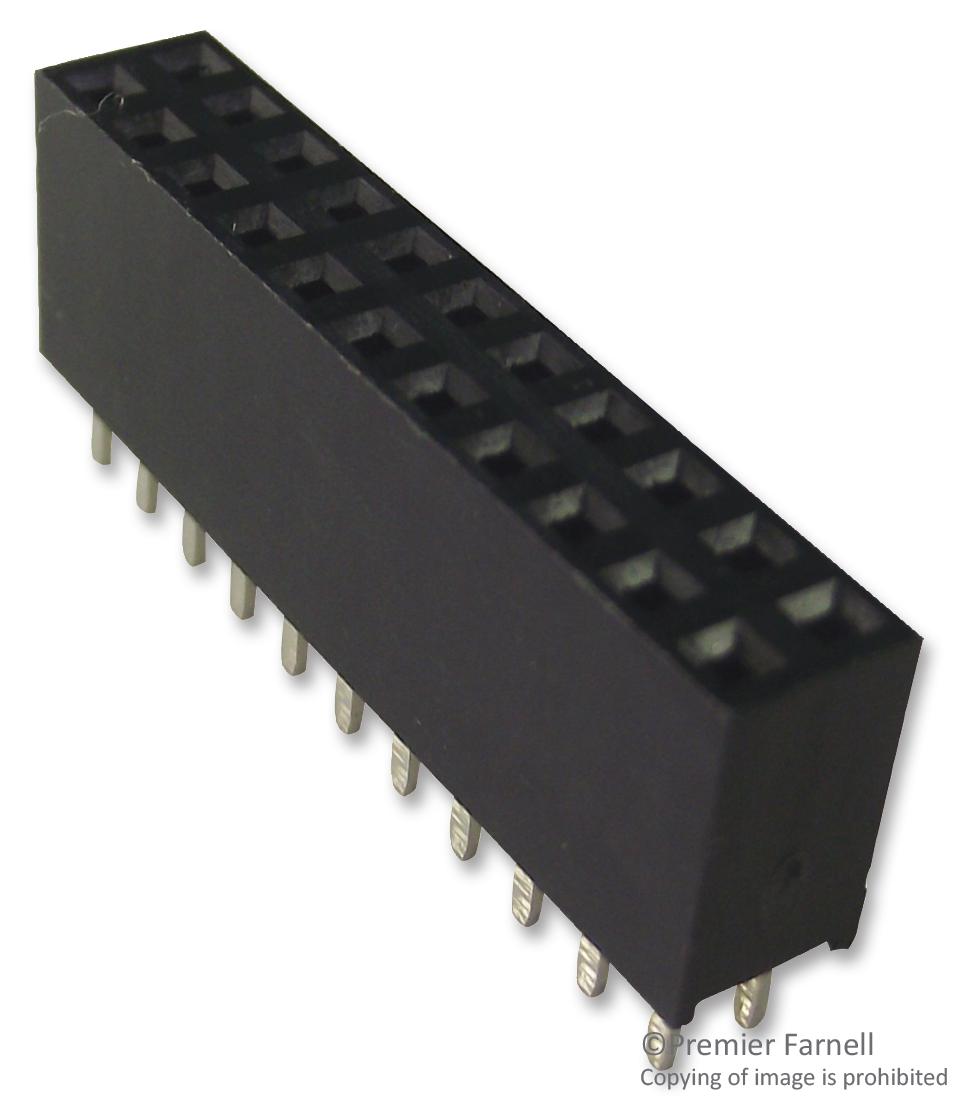

2200SB-50g-A1 Socket, Pcb, 2 Row, Vert, 50WAY multicomp Pro

MULTICOMP PROSKU:2200SB-50G-A1 Bestelcode:1577756

Prijs:
Actie prijs€4,30

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (649 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - 2200SB-50G-A1 - PCB Receptacle, Board-to-Board, 1.27 mm, 2 Rows, 50 Contacts, Through Hole Mount, 220SB

  • Pitch Spacing: 1.27mm
  • No. of Contacts: 50Contacts
  • Gender: Receptacle
  • Product Range: 220SB Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 2Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Resistance: 20mohm
  • Contact Termination: Solder
  • Current Rating: 1A
  • External Length / Height: 4.5mm
  • Insulation Resistance: 1000Mohm
  • Lead Spacing: 1.27mm
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -25°C
  • Row Pitch: 1.27mm
  • Termination Method: Solder
  • Voltage Rating VAC: 50V
  • Withstand Voltage: 500V
