2211-05-301 RELAY, REED, SPDT, 100V, 0.25A, THT COTO TECHNOLOGY

2211-05-301 Relay, Reed, SPDT, 100V, 0.25A, THT COTO Technology

COTO TECHNOLOGYSKU:2211-05-301 Bestelcode:1454983
Prijs:
€49,98

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Product datasheet

Omschrijving

COTO TECHNOLOGY - 2211-05-301 - Reed Relay, SPDT, 5 VDC, 2200, Through Hole, 230 ohm, 250 mA

  • Contact Configuration: SPDT
  • Coil Voltage: 5VDC
  • Product Range: 2200 Series
  • Relay Mounting: Through Hole
  • Coil Resistance: 230ohm
  • Switching Current Max: 250mA
  • Switching Voltage Max: 100V
  • SVHC: No SVHC (15-Jan-2019)
  • Coil Voltage VDC Nom: 5V
  • Contact Current DC Max: 250mA
  • Contact Resistance: 150mohm
  • Contact Voltage DC Max: 100V
  • External Depth: 5.33mm
  • External Height: 5.72mm
  • External Length / Height: 5.72mm
  • External Width: 20.57mm
  • Insulation Resistance: 100Gohm
  • Must Actuate Voltage: 3.8VDC
  • Must Release Voltage: 0.4VDC
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -20°C
  • Operating Time: 1ms
  • Release Time: 2ms
  • Row Pitch: 2.54mm
  • Switch Current Max: 250mA
  • Switch Power Max: 3W
  • Type: 1 Form C

Bekijk ook eens

2211-12-301 RELAY, REED, SPDT, 100V, 0.25A, THT COTO TECHNOLOGY
COTO TECHNOLOGY 2211-12-301 Relay, Reed, SPDT, 100V, 0.25A, THT COTO Technology
€37,32
Op voorraad, 292 producten
9091-12-01 RELAY, REED, SPST-NO, 200V, 0.5A, THT COTO TECHNOLOGY
COTO TECHNOLOGY 9091-12-01 Relay, Reed, SPST-NO, 200V, 0.5A, THT COTO Technology
€13,45
Op voorraad, 10 producten
D31C2100 RELAY, REED, SPDT, 30VDC, 0.25A, THT CELDUC
CELDUC D31C2100 Relay, Reed, SPDT, 30Vdc, 0.25A, THT Celduc
€20,12
Op voorraad, 107 producten
D31C5100 RELAY, REED, SPDT, 30VDC, 0.25A, THT CELDUC
CELDUC D31C5100 RELAY, REED, SPDT, 30VDC, 0.25A, THT CELDUC
€20,43
Op voorraad, 130 producten
V23057-B0002-A101 RELAY, SPDT, 250VAC, 5A TE CONNECTIVITY
TE CONNECTIVITY V23057-B0002-A101 Relay, SPDT, 250VAC, 5A Te Connectivity
€39,20
Op voorraad, 649 producten
V23057-A0006-A101 RELAY, SPDT, 250VAC, 5A TE CONNECTIVITY
TE CONNECTIVITY V23057-A0006-A101 Relay, SPDT, 250VAC, 5A Te Connectivity
€28,26
Op voorraad, 915 producten

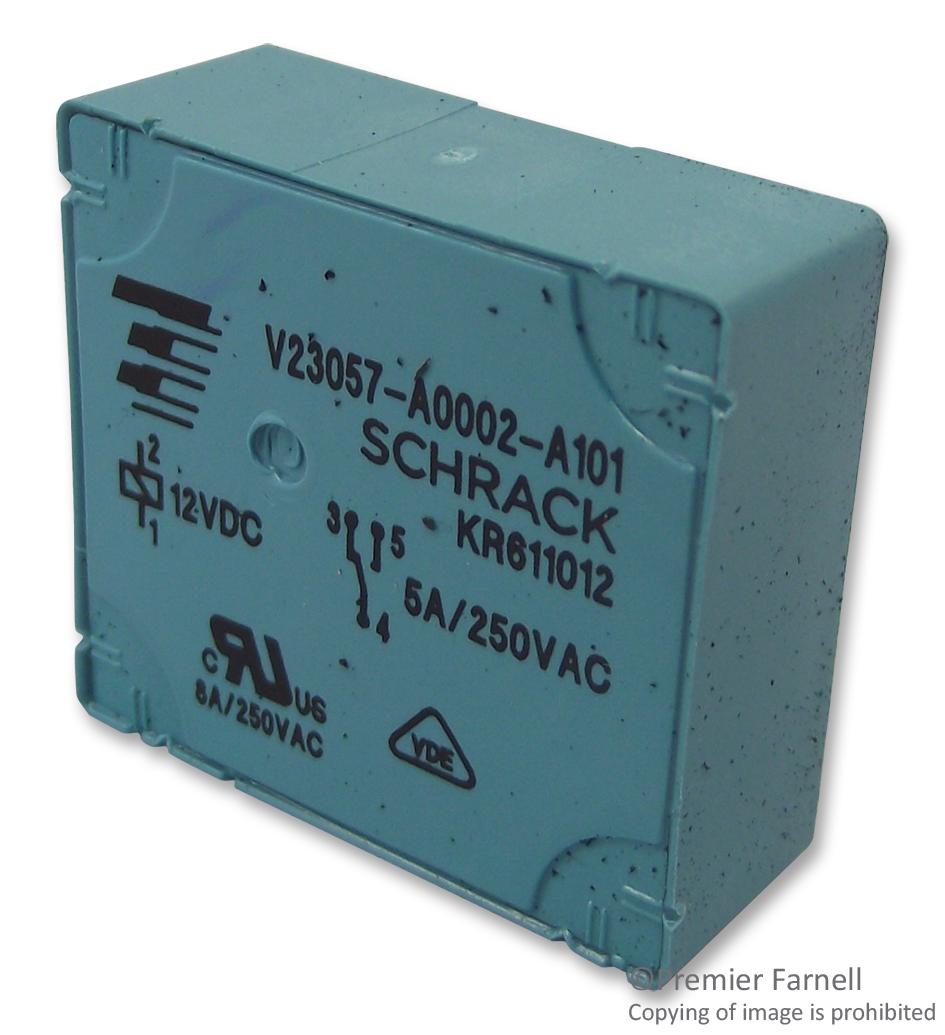

V23057-A0002-A101 RELAY, SPDT, 250VAC, 5A TE CONNECTIVITY
