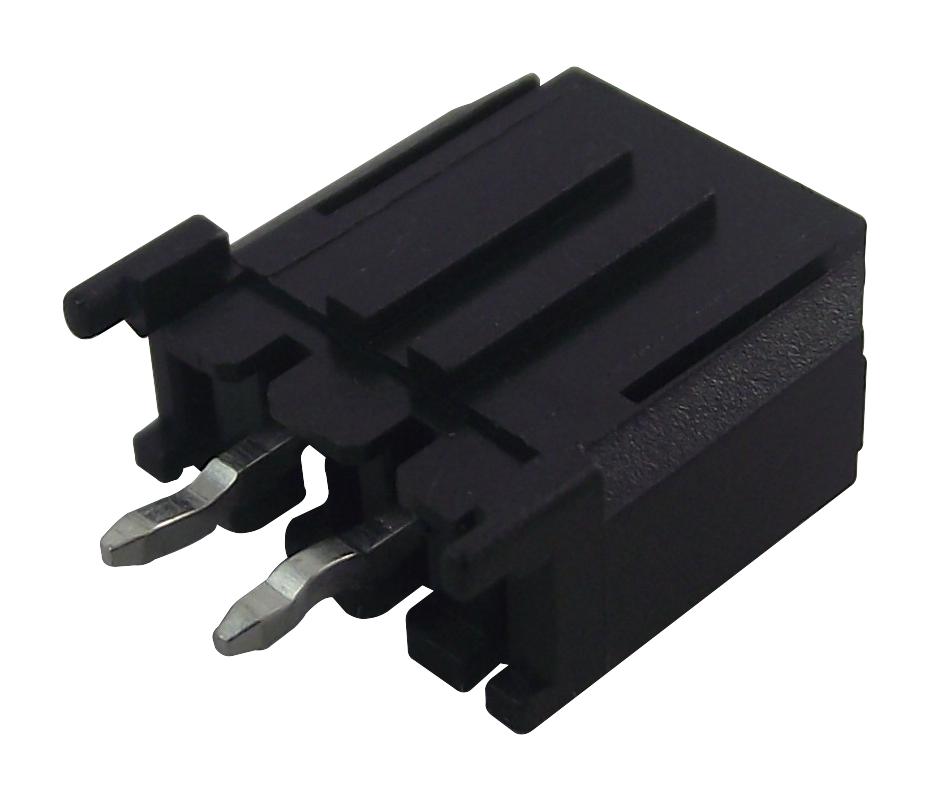

2261(5561)Sa-02 Header, Vertical, 2WAY multicomp Pro

MULTICOMP PROSKU:2261(5561)SA-02 Bestelcode:1578635

Prijs:
Actie prijs€0,58

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2966 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - 2261(5561)SA-02 - Pin Header, Vertical, Wire-to-Board, 3 mm, 1 Rows, 2 Contacts, Through Hole Straight, 2261(5561)

  • Pitch Spacing: 3mm
  • No. of Contacts: 2Contacts
  • Gender: Header
  • Product Range: 2261(5561) Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 1Rows
  • Contact Plating: Tin Plated Contacts
  • Contact Material: Copper Alloy
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Resistance: 10mohm
  • Current Rating: 5A
  • Flammability Rating: UL94V-2
  • Insulation Resistance: 1000Mohm
  • Material: Nylon 4,6
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -25°C
  • Voltage Rating VAC: 250V
