Omschrijving

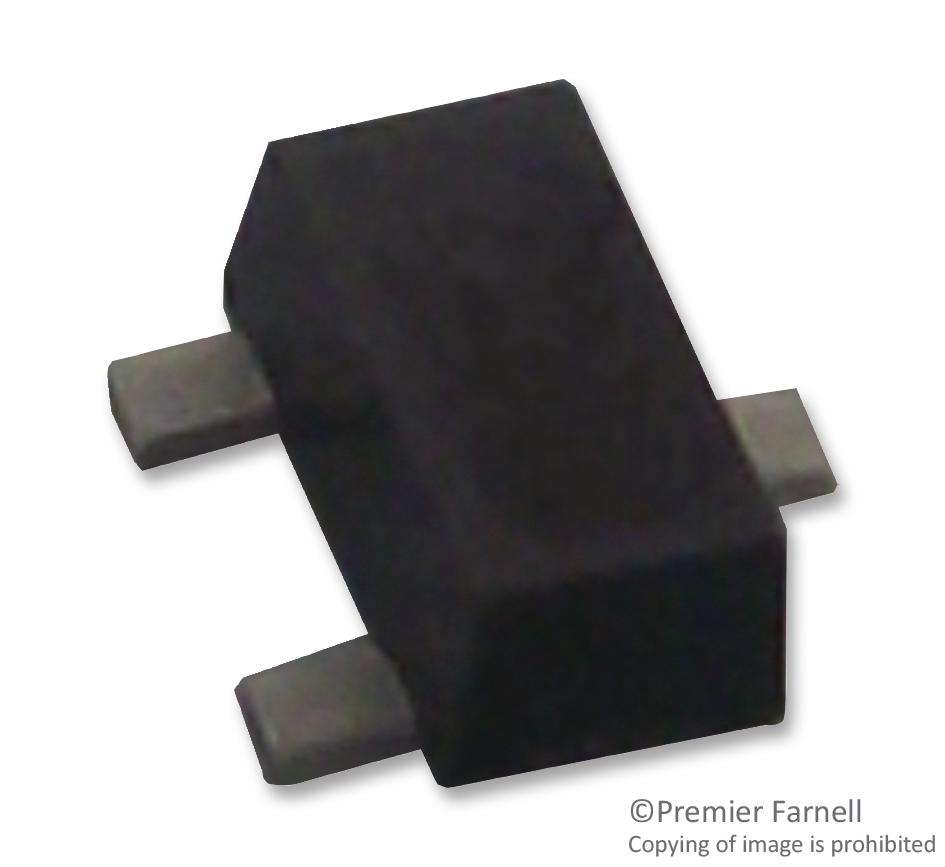

ROHM - 2SC5661T2LP - Bipolar (BJT) Single Transistor, NPN, 18 V, 20 mA, 150 mW, VMT, Surface Mount
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 18V
- Transition Frequency ft: 1.5GHz
- Power Dissipation Pd: 150mW
- DC Collector Current: 20mA
- DC Current Gain hFE: 56hFE
- Transistor Case Style: VMT
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Collector Emitter Saturation Voltage Vce(on): 500mV
- Current Ic Continuous a Max: 20mA
- Gain Bandwidth ft Typ: 1.5GHz
- Hfe Min: 56
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Termination Type: Surface Mount Device
- Transistor Type: General Purpose
