Documenten en downloads
Omschrijving

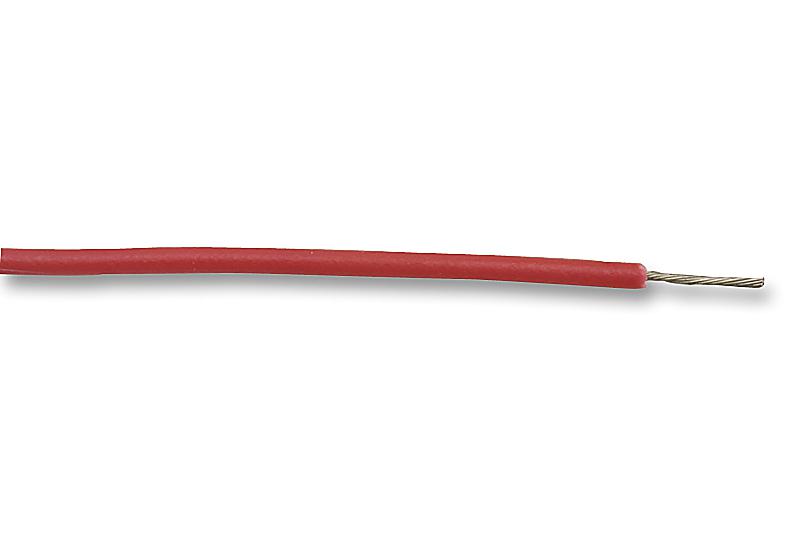

ALPHA WIRE - 3048 RD001 - Wire, Stranded, Hook Up, UL1007, PVC, Red, 28 AWG, 0.072 mm², 1000 ft, 305 m
- Jacket Material: PVC
- Jacket Colour: Red
- Wire Gauge: 28AWG
- Conductor Area CSA: 0.072mm²
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 305m
- No. of Max Strands x Strand Size: 7 x 36AWG
- Voltage Rating: 300V
- Conductor Material: Tinned Copper
- External Diameter: 1.194mm
- Approval Specification: CSA AWM I A/B FT1, CSA TR-64 FT1, UL 1007,UL 1581,UL 1569, UL VW-1
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Cable UL Style Number: UL1007
- Conductor Make-up: 7 / 36AWG
- Current Rating: 3A
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Outer Diameter: 1.19mm
- Secondary Insulation Colour: Red
- Secondary Insulation Material: PVC
- Voltage Rating VAC: 300V
- Wire Size: 28AWG
