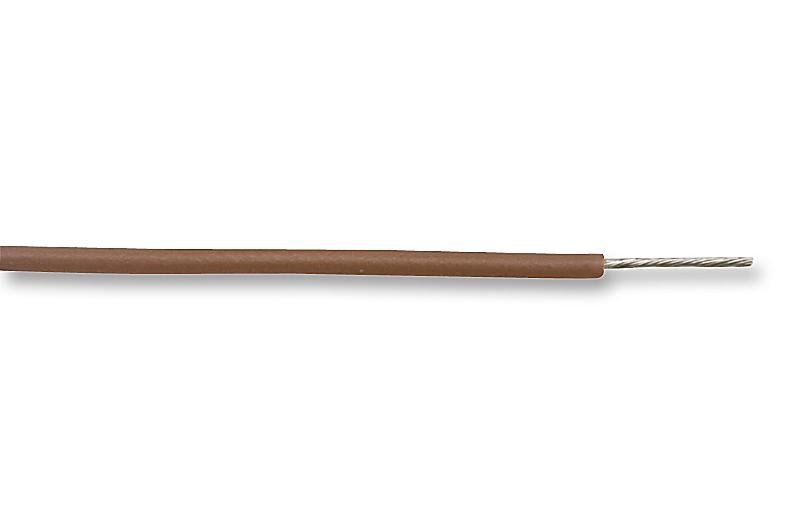

3053 BR001 Wire, UL1007, 20AWG, Brown, 305M Alpha Wire

ALPHA WIRESKU:3053 BR001 Bestelcode:1182502

Prijs:
Actie prijs€111,66

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (22 units)

Documenten en downloads

Omschrijving

ALPHA WIRE - 3053 BR001 - Wire, Stranded, Hook Up, UL1007, PVC, Brown, 20 AWG, 0.51 mm², 1000 ft, 305 m

  • Jacket Material: PVC
  • Jacket Colour: Brown
  • Wire Gauge: 20AWG
  • Conductor Area CSA: 0.51mm²
  • Reel Length (Imperial): 1000ft
  • Reel Length (Metric): 305m
  • No. of Max Strands x Strand Size: 10 x 0.255mm
  • Voltage Rating: 300V
  • Conductor Material: Copper
  • External Diameter: 1.803mm
  • Approval Specification: CSA AWM I A/B FT1, CSA TR-64 FT1, UL 1007,UL 1581,UL 1569, UL VW-1
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Cable UL Style Number: UL1007
  • Conductor Make-up: 10/30AWG
  • Current Rating: 10A
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -40°C
  • Outer Diameter: 1.8mm
  • Secondary Insulation Colour: Brown
  • Secondary Insulation Material: PVC
  • Voltage Rating VAC: 300V
  • Wire Size: 20AWG
