Omschrijving

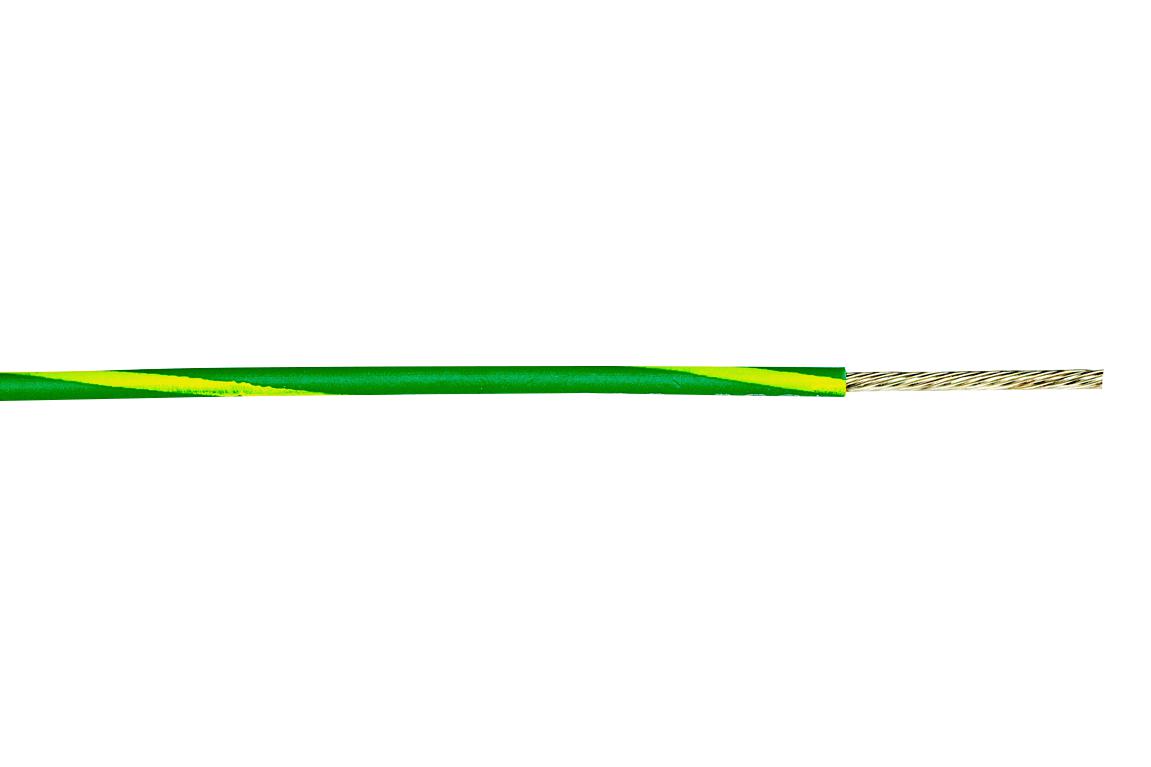

ALPHA WIRE - 3071 GY001 - Wire, Stranded, Hook Up, UL1015, PVC, Green, Yellow, 22 AWG, 0.357 mm², 1000 ft, 304.8 m
- Jacket Material: PVC
- Jacket Colour: Green, Yellow
- Wire Gauge: 22AWG
- Conductor Area CSA: 0.357mm²
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 304.8m
- No. of Max Strands x Strand Size: 7 x 0.255mm
- Voltage Rating: 600V
- Conductor Material: Copper
- External Diameter: 2.38mm
- Approval Specification: CSA AWM I A/B FT1 & TEW 105, UL 1015, 1028, 1230, 1231, 1232, 1283 & 1284, VW-1, UL MTW
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Cable UL Style Number: UL1015
- Conductor Make-up: 7 / 30AWG
- Current Rating: 10A
- Operating Temperature Max: 105°C
- Operating Temperature Min: -20°C
- Outer Diameter: 2.38mm
- Secondary Insulation Colour: Green / Yellow
- Secondary Insulation Material: PVC
- Voltage Rating VAC: 600V
- Wire Size: 22AWG
