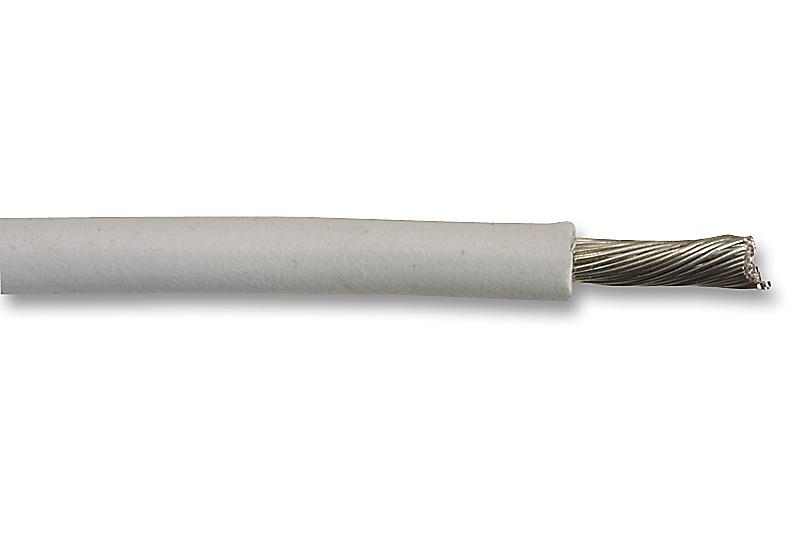

3073 WH001 Wire, UL1015, 20AWG, White, 305M Alpha Wire

ALPHA WIRESKU:3073 WH001 Bestelcode:1199066

Prijs:
Actie prijs€138,45

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Nog maar 4 producten leverbaar

Documenten en downloads

Omschrijving

ALPHA WIRE - 3073 WH001 - Wire, Stranded, Hook Up, UL1015, PVC, White, 20 AWG, 0.51 mm², 1000 ft, 304.8 m

  • Jacket Material: PVC
  • Jacket Colour: White
  • Wire Gauge: 20AWG
  • Conductor Area CSA: 0.51mm²
  • Reel Length (Imperial): 1000ft
  • Reel Length (Metric): 304.8m
  • No. of Max Strands x Strand Size: 10 x 0.255mm
  • Voltage Rating: 600V
  • Conductor Material: Copper
  • External Diameter: 2.565mm
  • Approval Specification: CSA AWM I A/B FT1 & TEW 105, UL 1015, 1028, 1230, 1231, 1232, 1283 & 1284, VW-1, UL MTW
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Cable UL Style Number: UL1015
  • Conductor Make-up: 10 / 30AWG
  • Current Rating: 13A
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -20°C
  • Outer Diameter: 2.54mm
  • Secondary Insulation Colour: White
  • Secondary Insulation Material: PVC
  • Voltage Rating VAC: 600V
  • Wire Size: 20AWG
