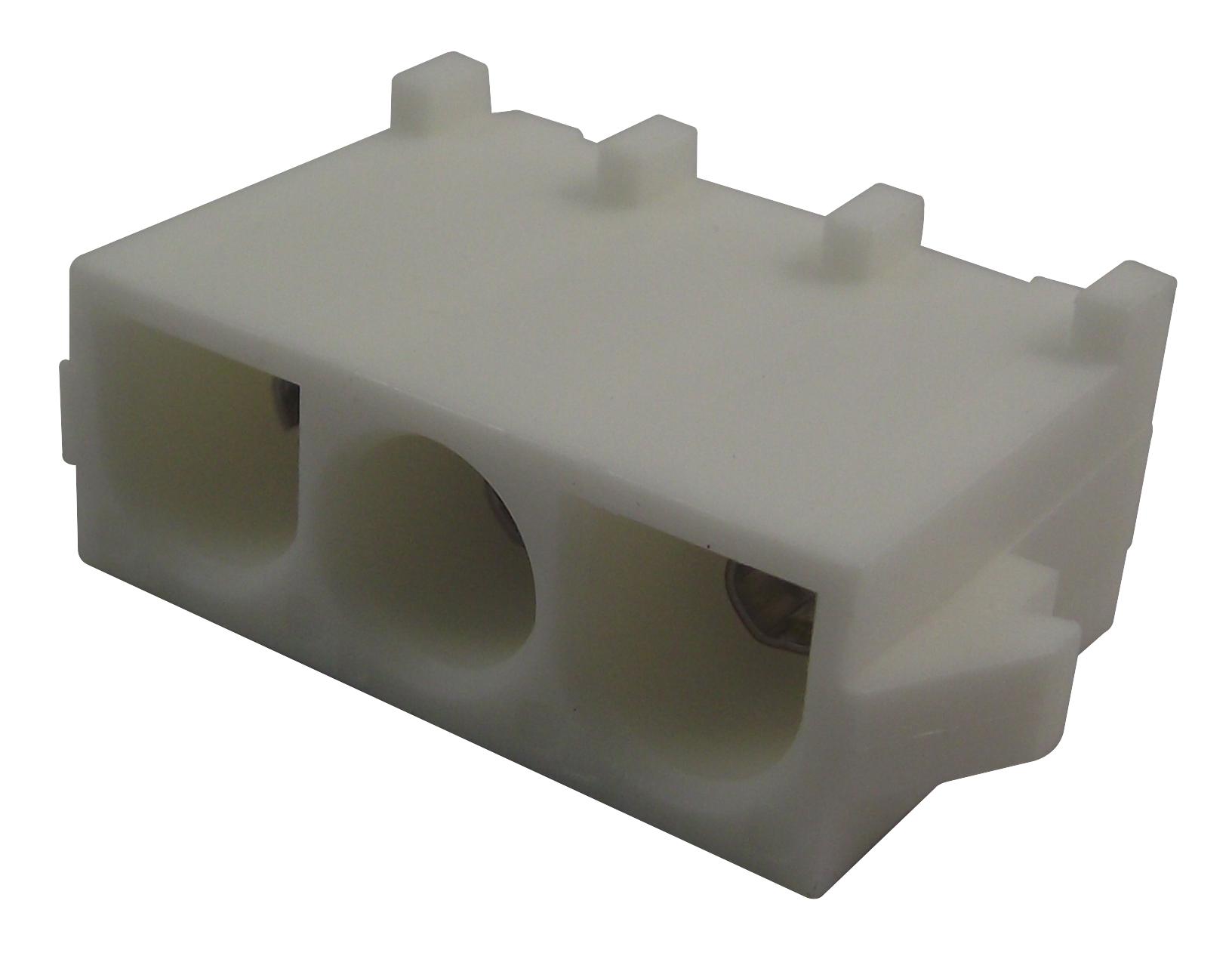

AMP - TE CONNECTIVITY - 350210-1 - Pin Header, Wire-to-Board, 5.08 mm, 1 Rows, 3 Contacts, Through Hole Straight
- Product Range: Commercial MATE-N-LOK Series
- No. of Contacts: 3Contacts
- Gender: Plug
- Pitch Spacing: 5.08mm
- Contact Termination Type: Through Hole
- No. of Rows: 1 Row
- Connector Mounting: PCB Mount
- Contact Plating: Tin Plated Contacts
- Contact Material: Copper Alloy
- SVHC: No SVHC (15-Jan-2019)
- Colour: Clear
- Connector Mounting Orientation: PCB
- Contact Resistance: 4mohm
- Contact Termination: Solder
- Current Rating: 15A
- Flammability Rating: UL94V-2
- Insulation Resistance: 500Mohm
- Lead Spacing: 5.08mm
- Material: Nylon
- No. of Mating Cycles: 50
- No. of Rows: 1Rows
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- PCB Hole Diameter: 1.8mm
- Termination Method: Solder
- Voltage Rating VAC: 250V
- Working Voltage: 250V
