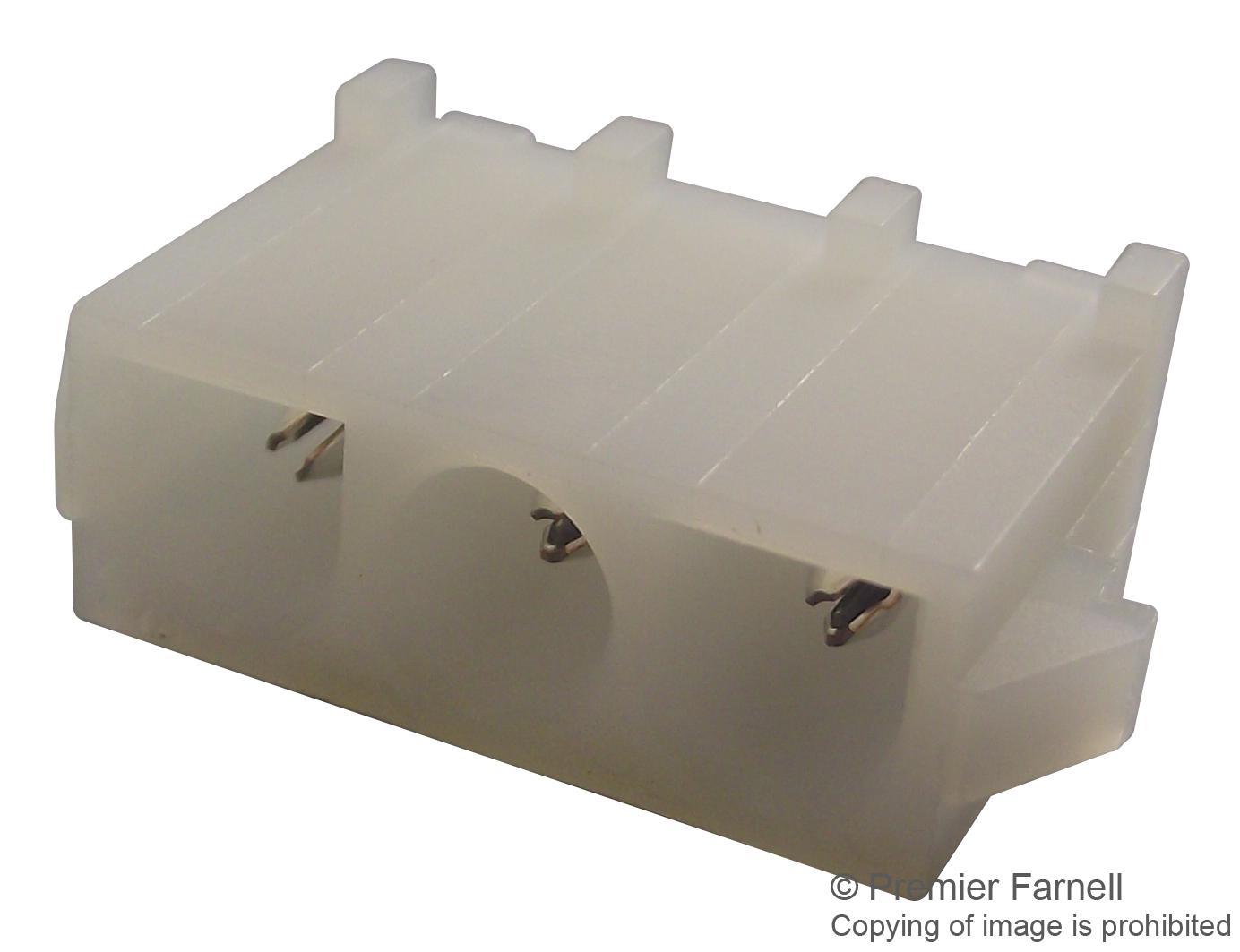

AMP - TE CONNECTIVITY - 350429-1 - Pin Header, Vertical, Wire-to-Board, 6.35 mm, 1 Rows, 3 Contacts, Through Hole Straight
- Pitch Spacing: 6.35mm
- No. of Contacts: 3Contacts
- Gender: Header
- Product Range: -
- Contact Termination Type: Through Hole
- No. of Rows: 1Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, UL
- Colour: Natural
- Current Rating: 12A
- Flammability Rating: UL94V-2
- Material: Nylon
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- PCB Hole Diameter: 1.78mm
- Voltage Rating VAC: 600V
