350786-1 Header, Plug, Vertical, Single Row, 2WAY Amp - Te Connectivity

AMP - TE CONNECTIVITYSKU:350786-1 Bestelcode:750232

Prijs:
Actie prijs€1,05

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (8241 units)

Omschrijving

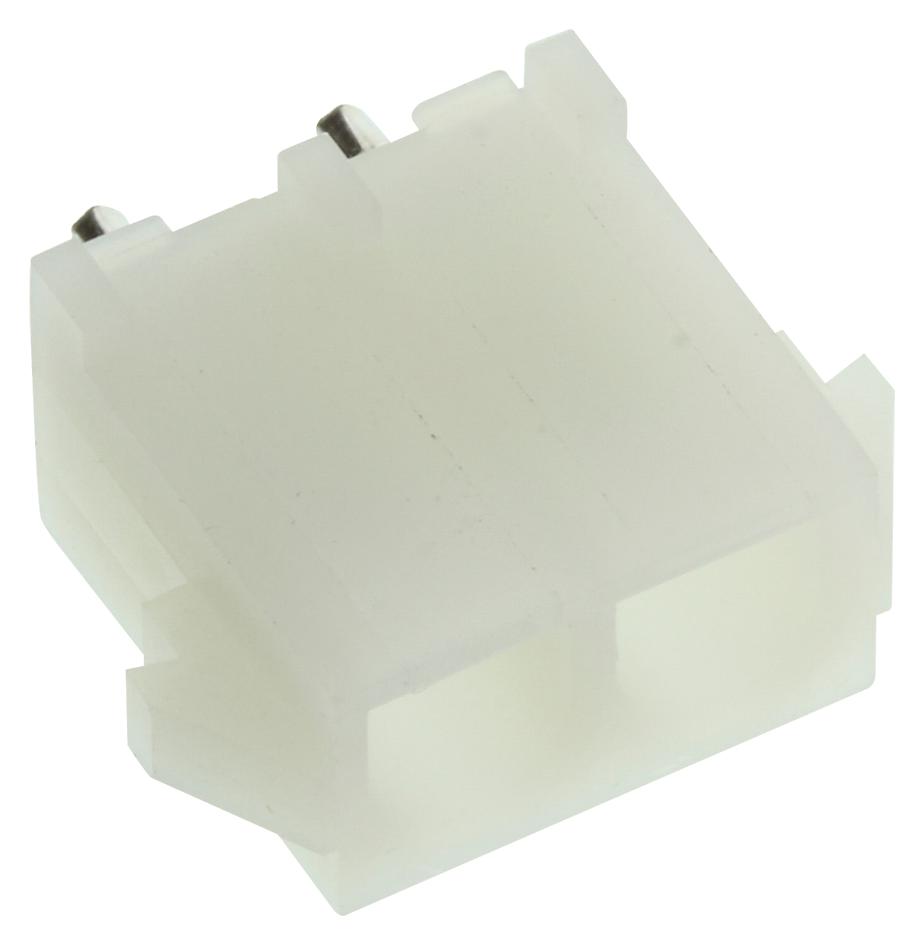

AMP - TE CONNECTIVITY - 350786-1 - Pin Header, Vertical, Wire-to-Board, 6.35 mm, 1 Rows, 2 Contacts, Through Hole Straight

  • Pitch Spacing: 6.35mm
  • No. of Contacts: 2Contacts
  • Gender: Header
  • Product Range: Universal MATE-N-LOK Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 1Rows
  • Contact Plating: Tin Plated Contacts
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Resistance: 3.5mohm
  • Current Rating: 12A
  • Dielectric Strength: 2900V/m
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Material: Clear nylon
  • No. of Mating Cycles: 50
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -55°C
  • PCB Hole Diameter: 1.8mm
  • Voltage Rating VAC: 600V
  • Working Voltage: 600V
