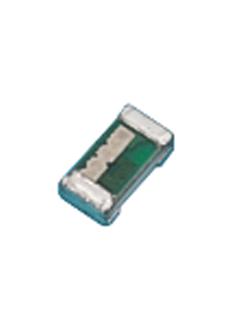

TE CONNECTIVITY - 36401E1N0ATDF - Thin Film Inductor, 1 nH, 0.15 ohm, 12 GHz, 700 mA, 0402 [1005 Metric], 3640
- Inductance: 1nH
- Product Range: 3640 Series
- DC Current Rating: 700mA
- High Frequency Inductor Case: 0402 [1005 Metric]
- Inductor Construction: Thin Film
- DC Resistance Max: 0.15ohm
- Inductance Tolerance: ± 0.2nH
- Self Resonant Frequency Min: 12GHz
- External Depth: 1mm
- External Length / Height: 0.5mm
- External Width: 0.5mm
- Frequency Max: 300MHz
- Inductor Case Style: 0402 [1005 Metric]
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Reel Quantity: 500
