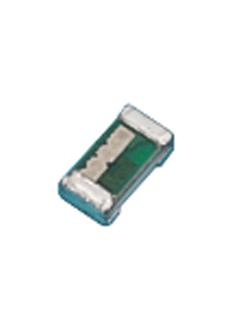

TE CONNECTIVITY - 36401E4N7ATDF - Thin Film Inductor, 4.7 nH, 0.65 ohm, 6 GHz, 320 mA, 0402 [1005 Metric], 3640
- Inductance: 4.7nH
- Product Range: 3640 Series
- DC Current Rating: 320mA
- High Frequency Inductor Case: 0402 [1005 Metric]
- Inductor Construction: Thin Film
- DC Resistance Max: 0.65ohm
- Inductance Tolerance: ± 0.2nH
- Self Resonant Frequency Min: 6GHz
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 1mm
- External Length / Height: 0.5mm
- External Width: 0.5mm
- Frequency Max: 300MHz
- Inductor Case Style: 0402 [1005 Metric]
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Reel Quantity: 500
