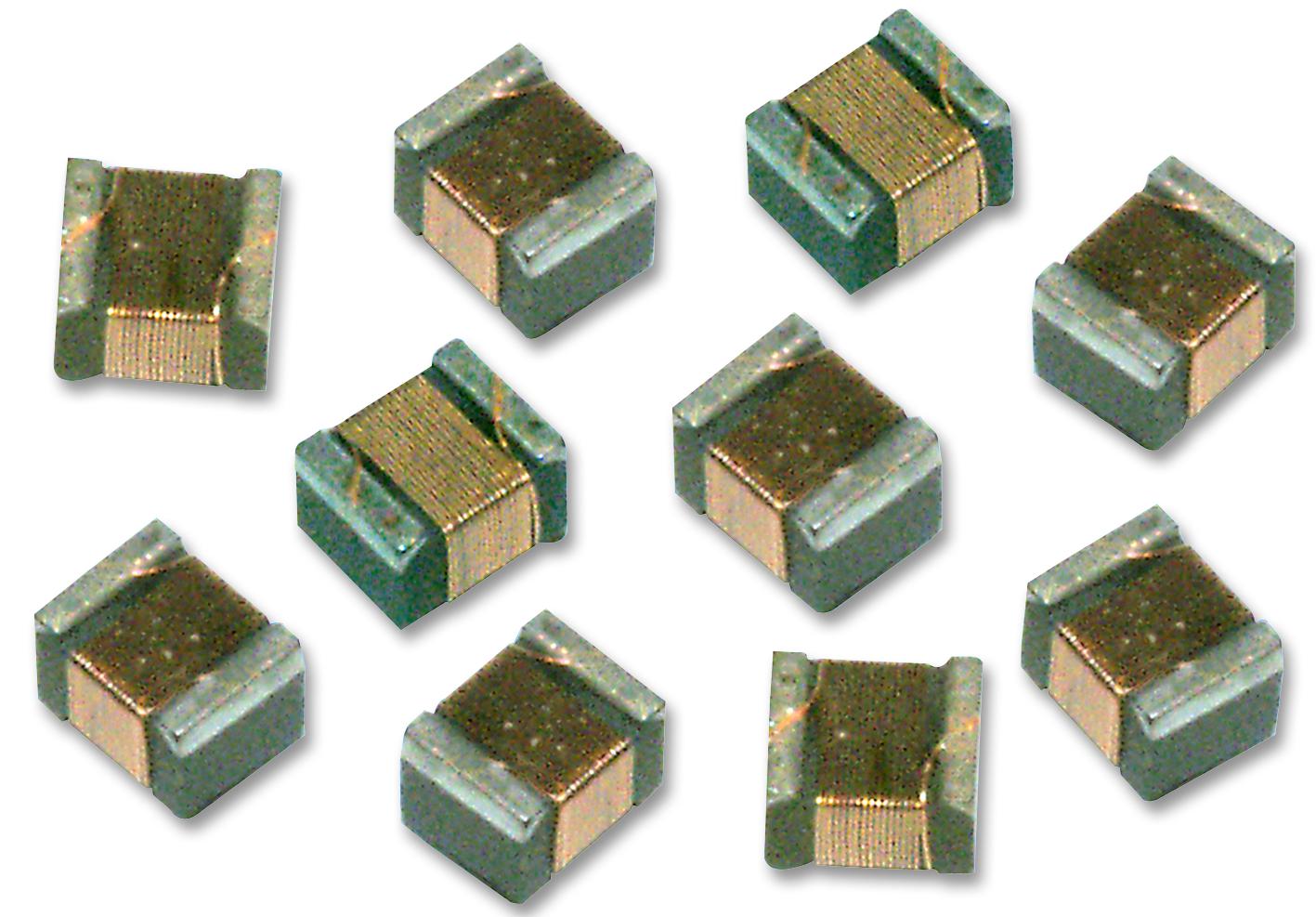

TE CONNECTIVITY - 36501E10NJTDG - Wirewound Inductor, 10 nH, 0.195 ohm, 3.9 GHz, 480 mA, 0402 [1005 Metric], 3650
- Inductance: 10nH
- Product Range: 3650 Series
- DC Current Rating: 480mA
- High Frequency Inductor Case: 0402 [1005 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 0.195ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 3.9GHz
- External Depth: 0.61mm
- External Length / Height: 1.27mm
- External Width: 0.76mm
- Inductor Case Style: 0402 [1005 Metric]
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
