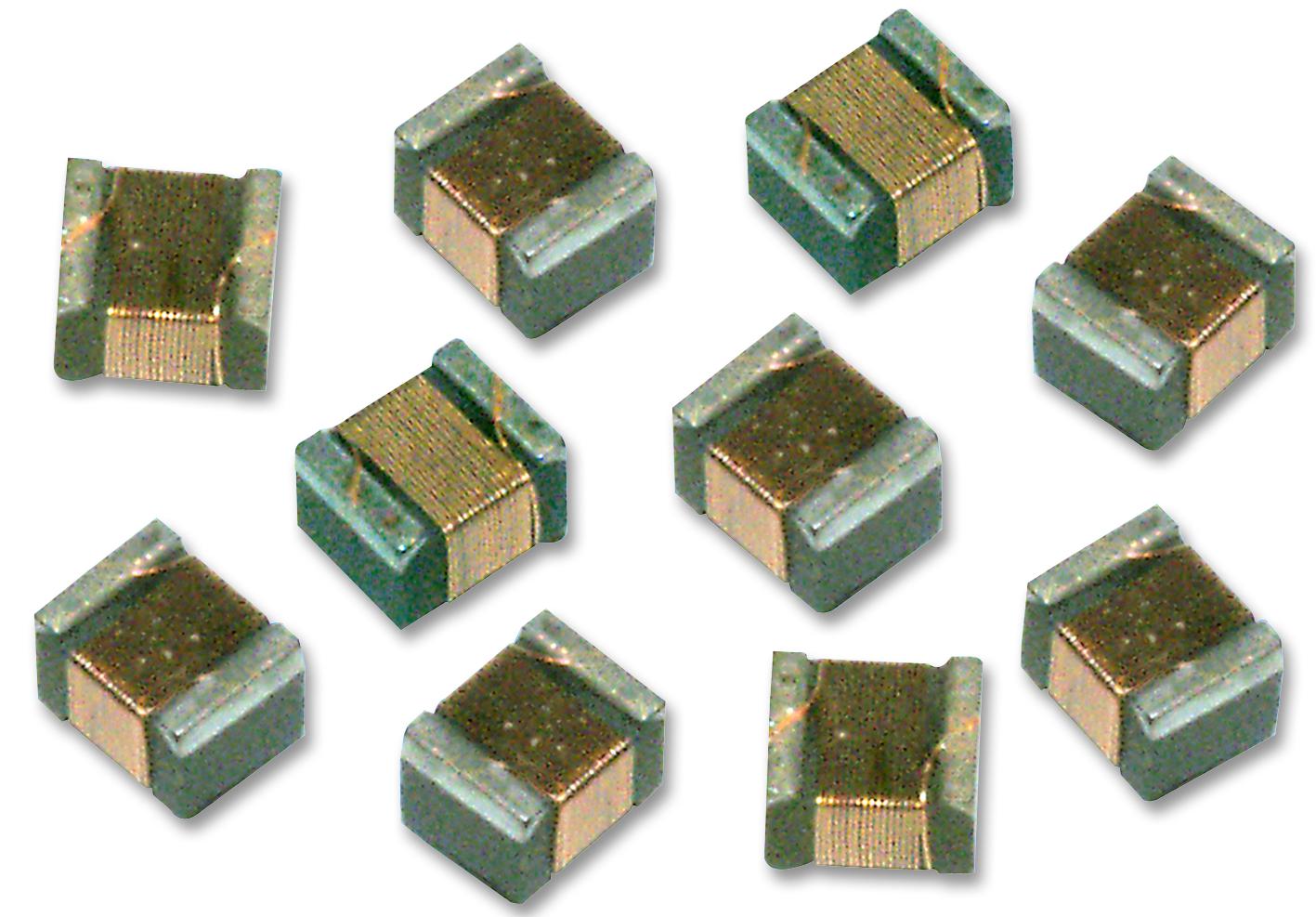

TE CONNECTIVITY - 36501J022JTDG - Wirewound Inductor, 22 nH, 0.19 ohm, 3 GHz, 700 mA, 0603 [1608 Metric], 3650
- Inductance: 22nH
- Product Range: 3650 Series
- DC Current Rating: 700mA
- High Frequency Inductor Case: 0603 [1608 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 0.19ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 3GHz
- External Depth: 1.02mm
- External Length / Height: 1.8mm
- External Width: 1.12mm
- Inductor Case Style: 0603 [1608 Metric]
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
