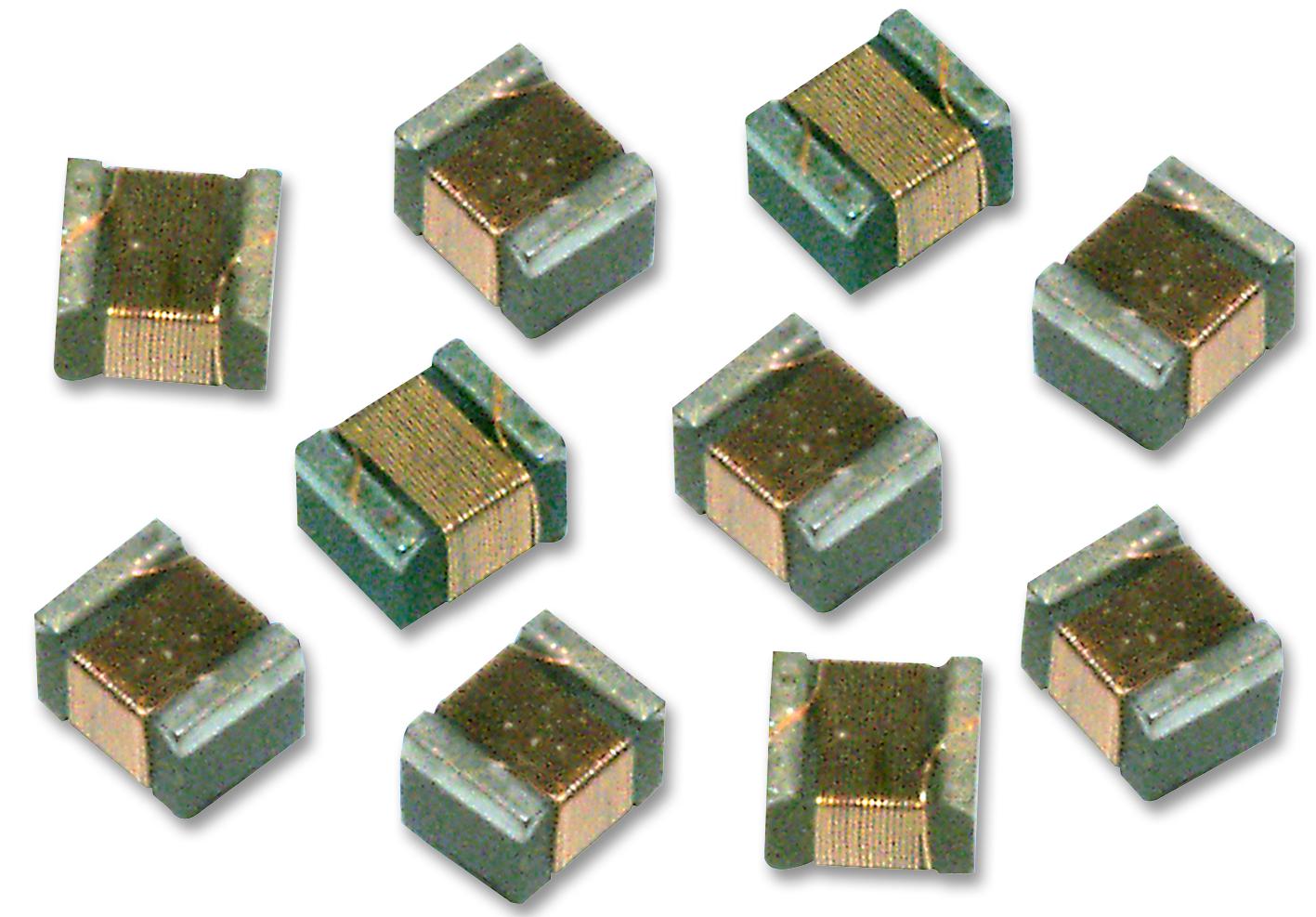

TE CONNECTIVITY - 36501J068JTDG - Wirewound Inductor, 68 nH, 0.34 ohm, 1.7 GHz, 600 mA, 0603 [1608 Metric], 3650
- Inductance: 68nH
- Product Range: 3650 Series
- DC Current Rating: 600mA
- High Frequency Inductor Case: 0603 [1608 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 0.34ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 1.7GHz
- External Depth: 1.02mm
- External Length / Height: 1.8mm
- External Width: 1.12mm
- Inductor Case Style: 0603 [1608 Metric]
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
