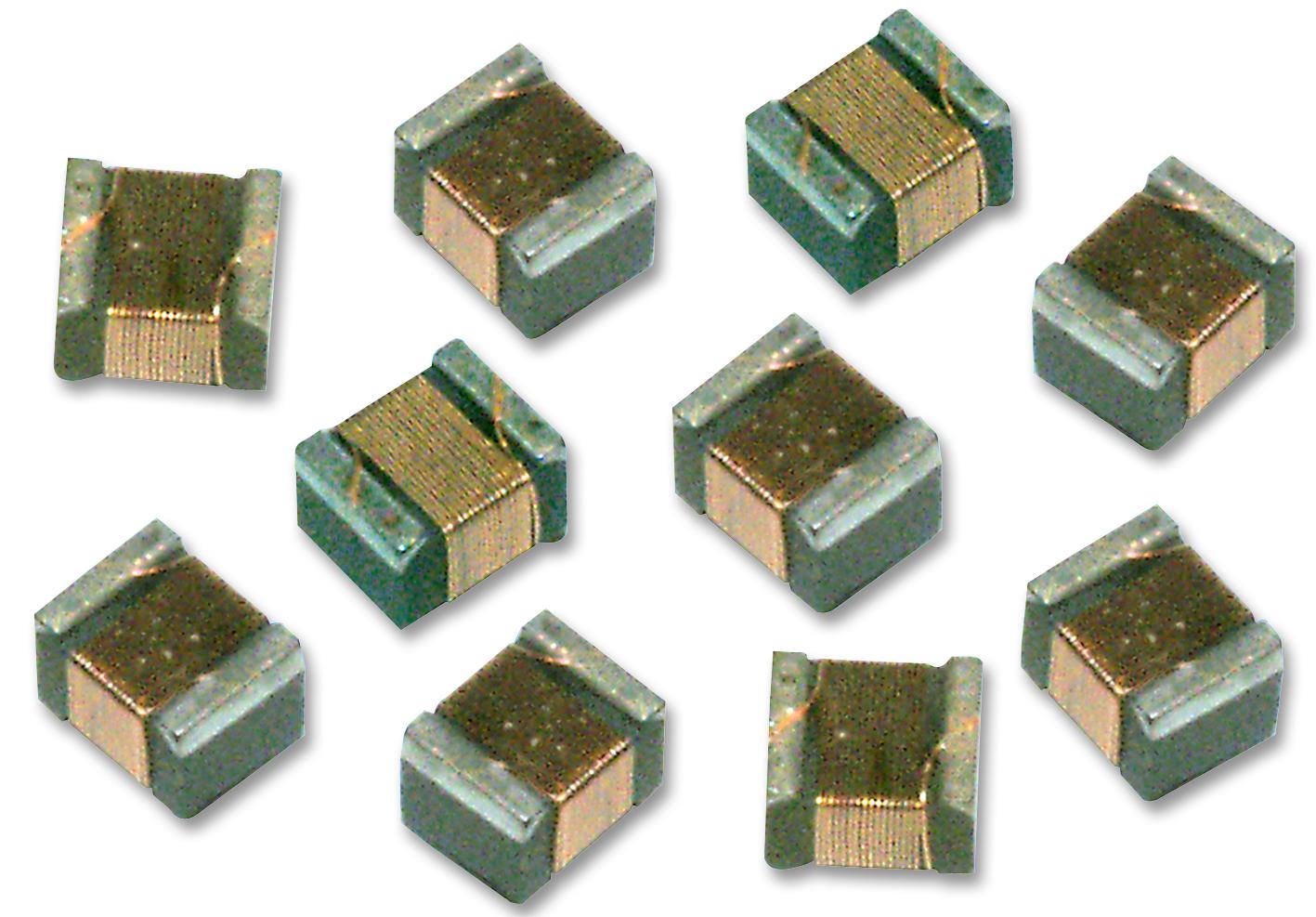

TE CONNECTIVITY - 36501JR15JTDG - Wirewound Inductor, 150 nH, 0.95 ohm, 1.3 GHz, 280 mA, 0603 [1608 Metric], 3650
- Inductance: 150nH
- Product Range: 3650 Series
- DC Current Rating: 280mA
- High Frequency Inductor Case: 0603 [1608 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 0.95ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 1.3GHz
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 1.02mm
- External Length / Height: 1.8mm
- External Width: 1.12mm
- Inductor Case Style: 0603 [1608 Metric]
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
