BOURNS - 4116R-1-330LF - Fixed Network Resistor, 33 ohm, Isolated, 8 Resistors, DIP, PC Pin, ± 1ohm
- Resistance: 33ohm
- Product Range: 4100R Series
- No. of Elements: 8Elements
- Network Circuit Type: Isolated
- Resistor Case Style: DIP
- No. of Pins: 16Pins
- Voltage Rating: 100V
- Power Rating per Element: 250mW
- Resistance Tolerance: ± 1ohm
- Temperature Coefficient: ± 250ppm/°C
- Automotive Qualification Standard: -
- SVHC: Lead (15-Jan-2019)
- External Depth: 5.33mm
- External Length / Height: 22.1mm
- External Width: 6.74mm
- Full Power Rating Temperature: 70°C
- Insulation Resistance: 10Mohm
- Lead Length: 3.18mm
- Lead Spacing: 2.54mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Power Rating: 2.25W
- Resistance R1: 33ohm
- Resistor Element Material: Thick Film
- Resistor Mounting: Through Hole
- Temperature Coeff Tracking +: 50ppm/°C
- Temperature Coeff Tracking -: 50ppm/°C
- Temperature Coeff. +: 100ppm/°C
- Temperature Coeff. -: 100ppm/°C
- Tolerance +: 2%
- Tolerance -: 2%
- Voltage Rating V DC: 100V
Verwachte verzendkosten
Bekijk ook eens

BOURNS

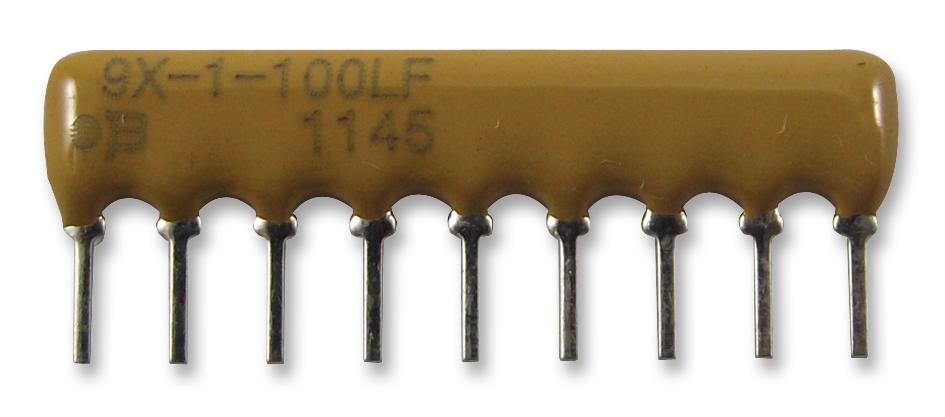

4609X-101-102LF Resistor, Network, 9 Pin, 1K, 2% Bourns
