Cable/wire

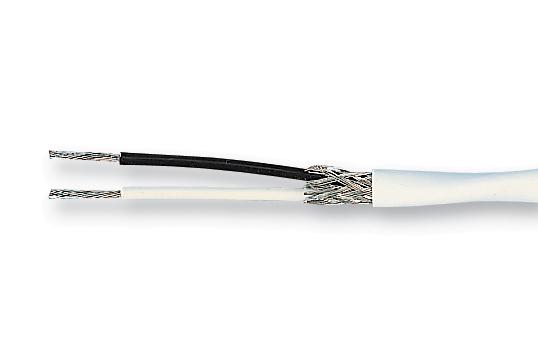

44A1121-22-0/9-9 CABLE, 22AWG, SCRN, 2CORE, 100M RAYCHEM - TE CONNECTIVITY
Ga met de muis over de afbeelding om in te zoomen Klik op de afbeelding om in te zomen
44A1121-22-0/9-9 CABLE, 22AWG, SCRN, 2CORE, 100M RAYCHEM - TE CONNECTIVITY

44A1121-22-0/9-9 Cable, 22AWG, SCRN, 2Core, 100m Raychem - Te Connectivity

RAYCHEM - TE CONNECTIVITYSKU:44A1121-22-0/9-9 Bestelcode:134910
Prijs:
€782,87

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

RAYCHEM - TE CONNECTIVITY - 44A1121-22-0/9-9 - Multicore Cable, Spec 44, Screened, 2 Core, 22 AWG, 0.38 mm², 328 ft, 100 m

  • Cable Shielding: Screened
  • No. of Cores: 2Core
  • Wire Gauge: 22AWG
  • Conductor Area CSA: 0.38mm²
  • Reel Length (Imperial): 328ft
  • Reel Length (Metric): 100m
  • Jacket Colour: White
  • No. of Max Strands x Strand Size: 19 x 0.15mm
  • Conductor Material: Copper
  • Jacket Material: PVF2
  • External Diameter: 3.353mm
  • Voltage Rating: 600V
  • Product Range: Spec 44 Series
  • SVHC: No SVHC (27-Jun-2018)
  • Cable Type: Braided Shield
  • Conductor Make-up: 19 / 0.15mm
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -65°C
  • Outer Diameter: 3.35mm
  • Screen Type Primary: Braid
  • Secondary Insulation Colour: Black / White
  • Secondary Insulation Material: Radiation Cross-Linked Modified PVF2
  • Short Term Temperature: 300°C
  • Standard: DEF61-12 (Part 26), MIL-W-81044
  • Voltage Rating VAC: 600V
  • Wire Size: 22AWG
