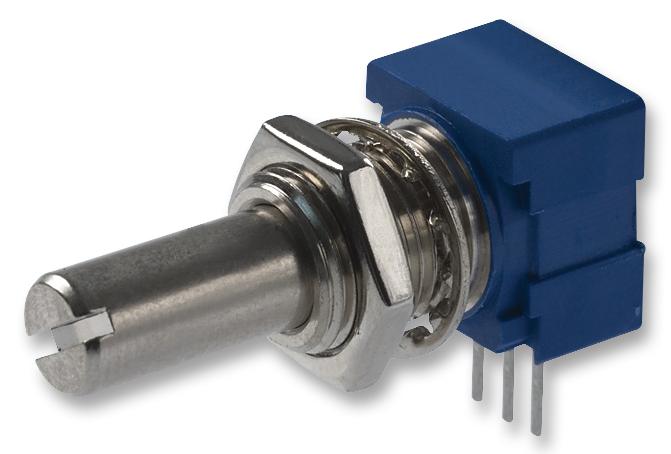

51AAD-B28-D15L Panel Control, Single Turn, 10K Bourns

BOURNSSKU:51AAD-B28-D15L Bestelcode:1689948

Prijs:
Actie prijs€13,07

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (45 units)

Documenten en downloads

Omschrijving

BOURNS - 51AAD-B28-D15L - Rotary Potentiometer, Conductive Plastic, 10 kohm, 1 Turns, Logarithmic, 500 mW, ± 20%, 51

  • Track Resistance: 10kohm
  • No. of Turns: 1Turns
  • Track Taper: Logarithmic
  • Power Rating: 500mW
  • Resistance Tolerance: ± 20%
  • Product Range: 51 Series
  • Potentiometer Mounting: Bushing
  • Shaft Diameter: 6.35mm
  • No. of Gangs: 1
  • Adjustment Type: Screwdriver Slot
  • Shaft Length: 12.7mm
  • SVHC: Lead (15-Jan-2019)
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: 1°C
  • Operating Temperature Range: +1°C to +125°C
  • Resistor Element Material: Conductive Plastic
  • Temperature Coefficient: ± 1000ppm/°C
  • Termination Type: Through Hole
  • Voltage Rating: 350VAC
