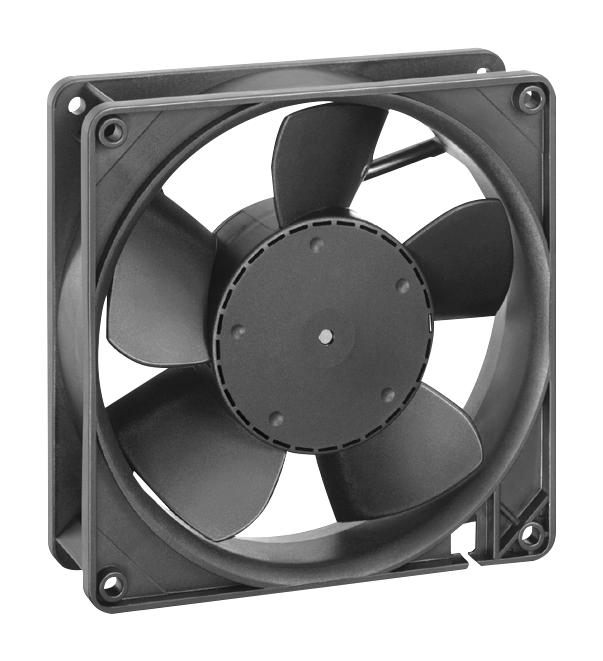

EBM-PAPST - 5214NM - DC Axial Fan, 24 V, Square, 127 mm, 38 mm, Ball Bearing, 110.1 CFM
- Supply Voltage: 24V
- Current Type: DC
- Fan Frame Size: 127mm
- External Depth: 38mm
- Noise Rating: 43dBA
- Flow Rate - Imperial: 110.1cu.ft/min
- Flow Rate - Metric: 187m³/h
- Bearing Type: Ball
- Power Connection Type: 2 Lead Wires
- Current Rating: -
- Product Range: 5200N Series
- Power Rating: 4.6W
- IP Rating: IP20
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CE, CSA, UL, VDE
- Case Material: Fiberglass-reinforced PBTP plastic
- External Height: 127mm
- External Width: 127mm
- Frame Dimensions: 127mm x 127mm x 38mm
- Input Voltage Max: 15VDC
- Input Voltage Min: 9VDC
- Lead Length: 310mm
- Material: Fiberglass-reinforced PA plastic
- Operating Temperature Max: 75°C
- Operating Temperature Min: -20°C
- Power Consumption: 4.6W
- Speed Range Max: 2750rpm
- Supply Voltage DC Max: 28VDC
- Supply Voltage DC Min: 12VDC
- Weight: 310g
