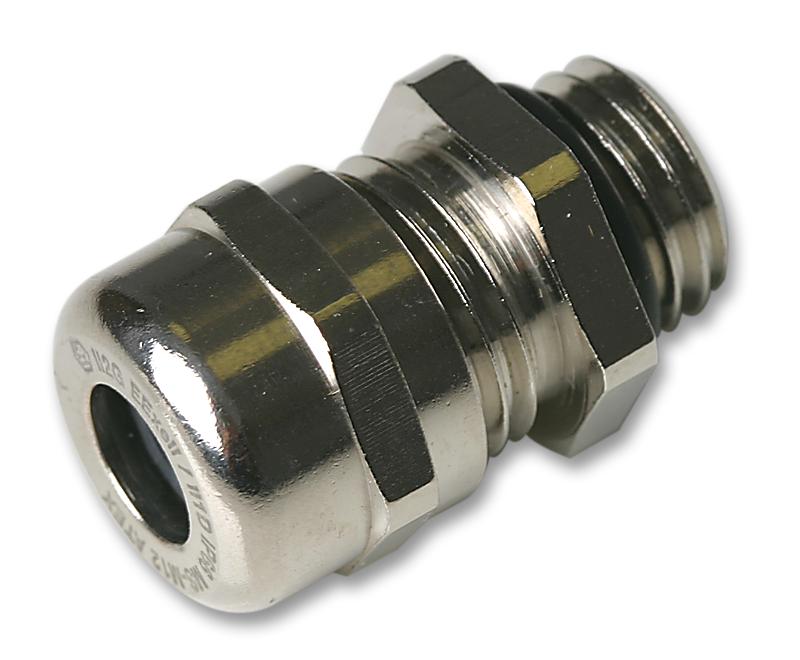

LAPP KABEL - 53112100 - Cable Gland, Skintop® MSR-M Series, M12 x 1.5, 1 mm, 5 mm, Brass, Metallic - Nickel Finish
- Thread Size - Imperial: -
- Thread Size - Metric: M12 x 1.5
- Cable Diameter Min: 1mm
- Cable Diameter Max: 5mm
- Cable Gland Material: Brass
- Gland Colour: Metallic - Nickel Finish
- IP / NEMA Rating: IP68, IP69, NEMA 1, NEMA 4X, NEMA 6, NEMA 12
- Product Range: Skintop MSR-M Series
- SVHC: No SVHC (15-Jan-2019)
- AF Width: 16mm
- Accessory Type: Gland
- Body Plating: Nickel
- Cable Diameter Max - Imperial: 0.197"
- Cable Diameter Max - Metric: 5mm
- Cable Diameter Min - Imperial: 0.039"
- Cable Diameter Min - Metric: 1mm
- For Use With: Smaller Outer Diameter Cables
- Mounting Hole Dia: 12mm
- Thread Length: 6.5mm
