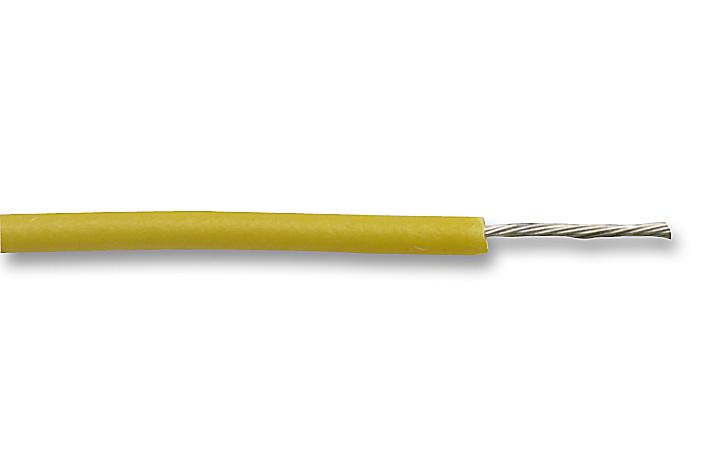

ALPHA WIRE - 5852 YL005 - Wire, Stranded, Hook Up, UL1213, PTFE, Yellow, 28 AWG, 0.072 mm², 100 ft, 30.5 m
- Jacket Material: PTFE
- Jacket Colour: Yellow
- Wire Gauge: 28AWG
- Conductor Area CSA: 0.072mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- No. of Max Strands x Strand Size: 7 x 0.13mm
- Voltage Rating: 600V
- Conductor Material: Silver Plated Copper
- External Diameter: 0.89mm
- Approval Specification: MIL-DTL-16878/4 (Type E), UL 1213
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Cable UL Style Number: UL1213
- Conductor Make-up: 7 / 36AWG
- Current Rating: 6A
- Operating Temperature Max: 200°C
- Operating Temperature Min: -60°C
- Outer Diameter: 0.89mm
- Voltage Rating VAC: 600V
- Wire Size: 28AWG
