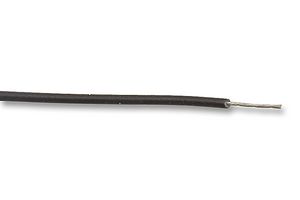

ALPHA WIRE - 5857 BK001 - Wire, PTFE, Black, 18 AWG, 0.969 mm², 1000 ft, 305 m
- Jacket Material: PTFE
- Jacket Colour: Black
- Wire Gauge: 18AWG
- Conductor Area CSA: 0.969mm²
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 305m
- No. of Max Strands x Strand Size: 19 x 30AWG
- Voltage Rating: 600V
- Conductor Material: Silver Plated Copper
- External Diameter: 1.778mm
- Approval Specification: MIL-DTL-16878/4 (Type E), UL 1213
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Cable UL Style Number: UL1213
- Conductor Make-up: 19 / 30AWG
- Current Rating: 24A
- Operating Temperature Max: 200°C
- Operating Temperature Min: -60°C
- Outer Diameter: 1.78mm
- Secondary Insulation Colour: Black
- Secondary Insulation Material: TFE
- Voltage Rating VAC: 600V
- Wire Size: 18AWG
