Omschrijving

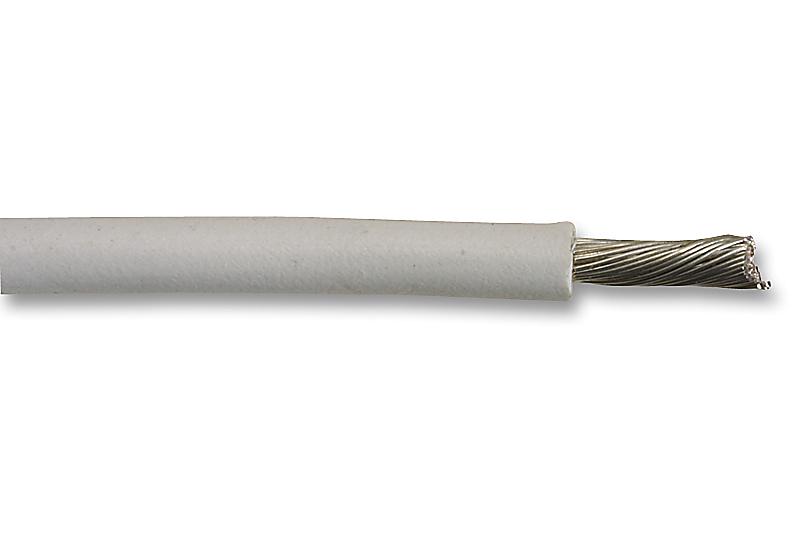

ALPHA WIRE - 5857 WH001. - Wire, Stranded, Hook Up, PTFE, White, 18 AWG, 0.969 mm², 1000 ft, 304.8 m
- Jacket Material: PTFE
- Jacket Colour: White
- Wire Gauge: 18AWG
- Conductor Area CSA: 0.969mm²
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 304.8m
- No. of Max Strands x Strand Size: 19 x 0.255mm
- Voltage Rating: 600V
- Conductor Material: Copper
- External Diameter: 1.78mm
- Approval Specification: MIL-DTL-16878/4 (Type E), UL 1213
- SVHC: No SVHC (15-Jan-2018)
- Conductor Make-up: 19 / 30AWG
- Outer Diameter: 1.753mm
- Wire Size: 18AWG
