Omschrijving

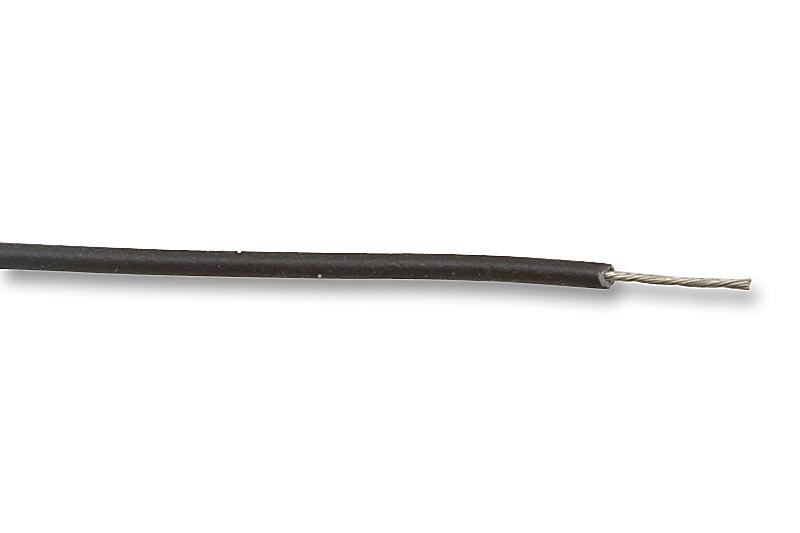

ALPHA WIRE - 5874 BK005 - Wire, Stranded, Hook Up, PTFE, Black, 24 AWG, 0.242 mm², 100 ft, 30.5 m
- Jacket Material: PTFE
- Jacket Colour: Black
- Wire Gauge: 24AWG
- Conductor Area CSA: 0.242mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- No. of Max Strands x Strand Size: 19 x 0.13mm
- Voltage Rating: 1kV
- Conductor Material: Silver Plated Copper
- External Diameter: 1.37mm
- Approval Specification: MIL-DTL-16878/5 (TYPE EE), UL 1180
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
