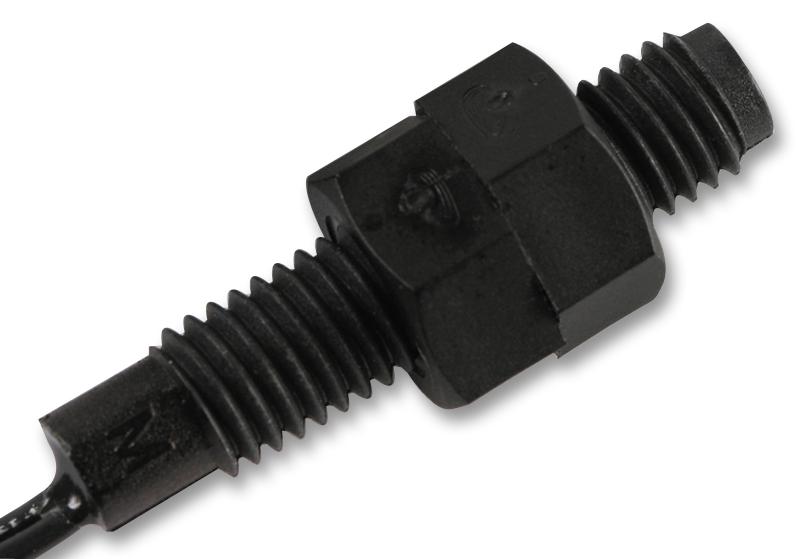

59070-1-S-02-A Sensor, Plastic Barrel, M8, NO LITTELFUSE

LITTELFUSESKU:59070-1-S-02-A Bestelcode:5540859

Prijs:
Actie prijs€6,08

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (729 units)

Documenten en downloads

Omschrijving

LITTELFUSE - 59070-1-S-02-A - Proximity Reed Sensor, 8.4 mm, 1NO, Cable Mount, 59070 Series

  • Sensing Range Max: 9mm
  • Sensor Mounting: -
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 105°C
  • Supply Current: 500mA
  • Product Range: 59070 Series
  • Body Length: 38.1mm
  • Breakover Voltage Min: 250VDC
  • Contact Configuration: 1NO
  • Current Load AC Max: 1.2A
  • External Diameter: 5.56mm
  • Lead Length: 300mm
  • Operating Temperature Range: -40°C to +105°C
  • Output Power Max: 10W
  • Power Rating: 10W
  • Sensing Distance Max: 9mm
  • Sensing Range: 12mm to 18mm
  • Sensor Input: Magnetic
  • Supply Voltage DC Max: 200V
  • Switching Current AC Max: 0.5A
  • Switching Power Max: 10W
  • Switching Voltage: 200VDC
  • Switching Voltage DC: 200
  • Thread Length: 31.75mm
  • Thread Size: M8
