Omschrijving

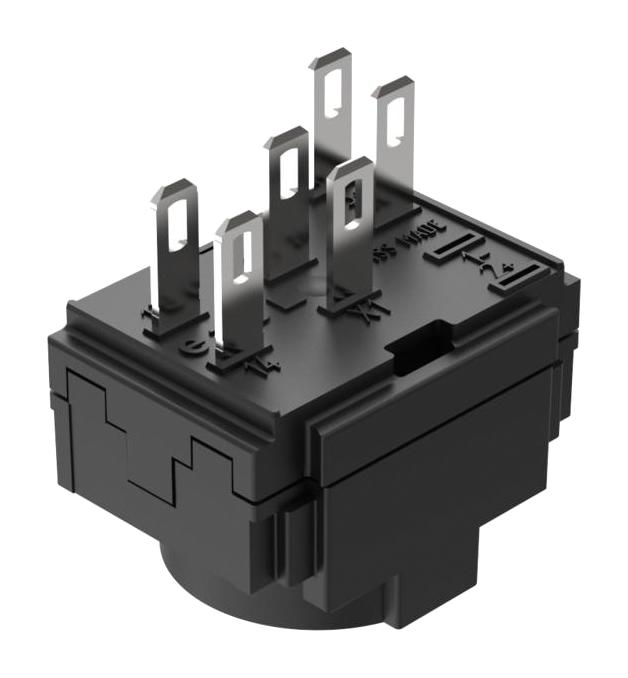

EAO - 61-8410.22 - Contact Block, 1NO, 5 A, 250 V, 1 Pole, 61 Series, Quick Connect, Solder
- Switch Terminals: Quick Connect, Solder
- No. of Poles: 1 Pole
- Contact Current Max: 5A
- Contact Voltage AC Max: 250V
- For Use With: EAO 61 Series Pushbutton, Keylock and Selector Switches
- Contact Voltage DC Max: 250V
- Product Range: 61 Series
- SVHC: No SVHC (15-Jan-2018)
- Behind Panel Depth: 41mm
- Contact Configuration: 1NO
- Contact Current Rating: 5A
- Current Rating: 5A
- IP / NEMA Rating: IP65
- Panel Cutout Diameter: 16mm
