Omschrijving

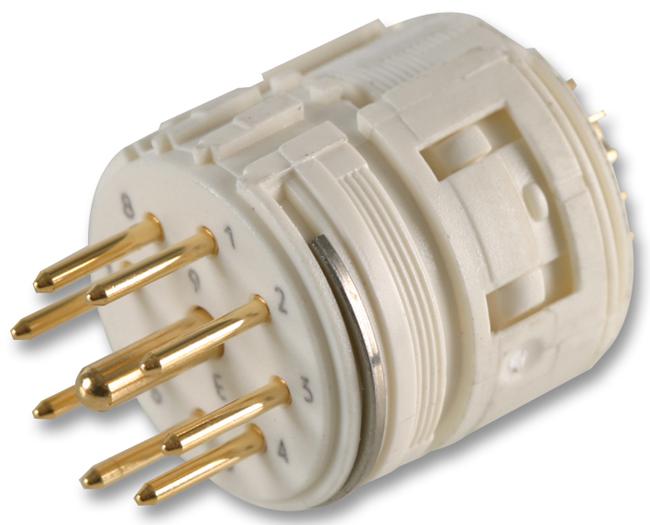

EPIC - 73022610 - Circular Connector, Circon R2.5 Series, Cable Mount Plug, 8 Contacts, Solder Pin, Bayonet
- Product Range: Circon R2.5 Series
- Circular Connector Shell Style: Cable Mount Plug
- No. of Contacts: 8Contacts
- Circular Contact Type: Solder Pin
- Coupling Style: Bayonet
- Connector Body Material: -
- Connector Body Plating: -
- Contact Material: Copper
- Contact Plating: Gold
- SVHC: No SVHC (15-Jan-2019)
- Connector Type: Circular Industrial
- Contact Gender: Pin
- Contact Plating: Gold Plated Contacts
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 9A
- Current per Power Contact Max: 25A
- Degree of Pollution: 3
- Flammability Rating: UL94V-0
- Gender: Plug
- IP / NEMA Rating: IP67
- No. of Mating Cycles: 500
- No. of Power Positions: 1
- No. of Signal Contacts: 8Contacts
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 160V
- Working Voltage: 160V
