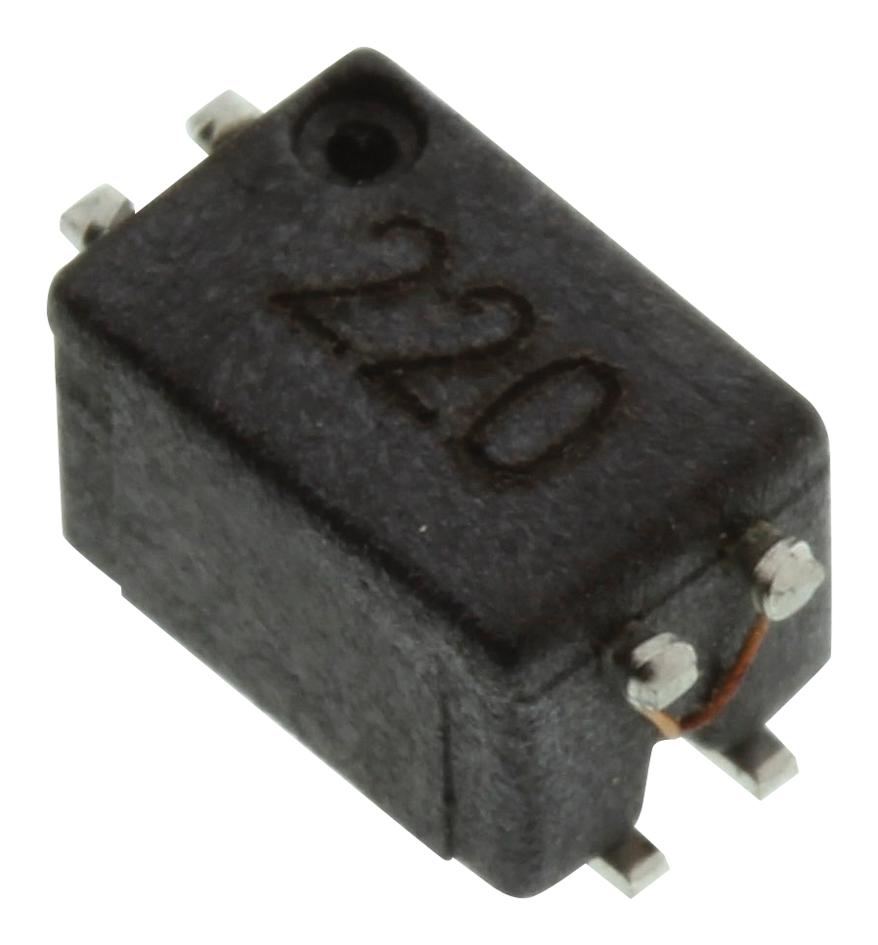

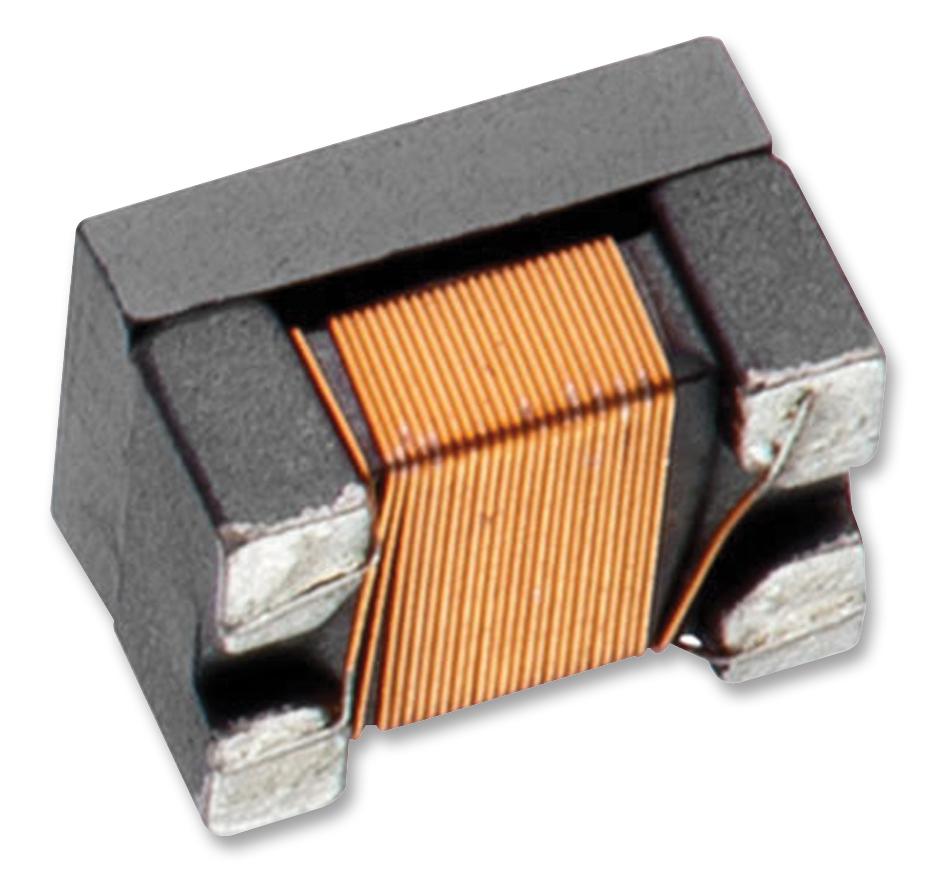

WURTH ELEKTRONIK - 744235801 - Filter, Line, Common Mode, 1.3 µH, WE-CNSW Series, 800 ohm, 1 A, 4.5mm x 3.2mm x 2.8mm
- Rated Current: 1A
- Inductance: 1.3µH
- Product Range: WE-CNSW Series
- Impedance: 800ohm
- Common Mode Filter Case: 4.5mm x 3.2mm x 2.8mm
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- DC Current Max: 1A
- DC Current Rating: 1A
- DC Resistance Max: 0.12ohm
- Filter Terminals: SMD
- Impedance Typ: 800ohm
- Inductance Min: 1.3µH
- Voltage Rating: 50V
- Voltage Rating V DC: 50V
