Omschrijving

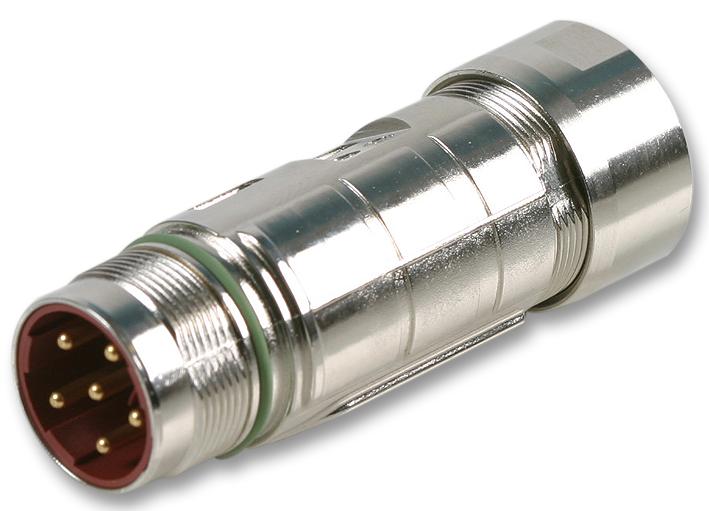

EPIC - 76133000 - Circular Connector, Circon LS1 Series, Cable Mount Plug, 6 Contacts, Crimp Pin
- Product Range: Circon LS1 Series
- Circular Connector Shell Style: Cable Mount Plug
- No. of Contacts: 6Contacts
- Circular Contact Type: Crimp Pin
- Coupling Style: -
- Connector Body Material: -
- Connector Body Plating: -
- Contact Material: Copper Alloy
- Contact Plating: Gold
- SVHC: No SVHC (15-Jan-2019)
- Body Plating: Nickel
- Cable Diameter Max: 15.5mm
- Cable Diameter Min: 7.5mm
- Connector Mounting: Cable Mount
- Connector Type: Circular Industrial
- Contact Gender: Pin
- Contact Plating: Gold Plated Contacts
- Contact Termination: Crimp
- Contact Termination Type: Crimp
- Current per Power Contact Max: 22A
- Degree of Pollution: 3
- Gasket Material: Viton/H-NBR
- Gender: Plug
- IP / NEMA Rating: IP67
- No. of Earth Contacts: 1
- No. of Mating Cycles: 500
- No. of Power Positions: 5
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 250V
- Withstand Voltage: 2.5kV
- Working Voltage: 250V
