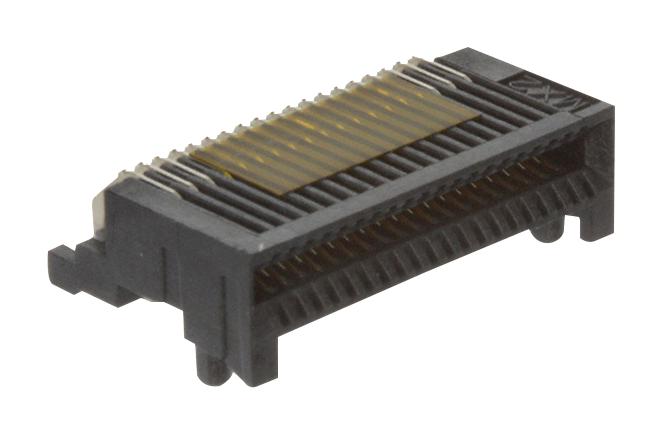

78109-0001 Connector, Sata, Rcpt, 16Pos, SMT Molex

MOLEX - 78109-0001 - I/O Connector, 16 Contacts, Receptacle, SATA, Surface Mount, 78109, PCB Mount

• No. of Contacts: 16Contacts
• Gender: Receptacle
• Connector Type: SATA
• Contact Termination Type: Surface Mount
• Product Range: 78109 Series
• Connector Mounting: PCB Mount
• Contact Plating: Gold Plated Contacts
• Contact Material: Copper
• SVHC: No SVHC (27-Jun-2018)
• Connector Mounting Orientation: PC Board
• Contact Resistance: 30mohm
• Contact Termination: Surface Mount Right Angle
• Current Rating: 1.5A
• Flammability Rating: UL94V-0
• Insulation Resistance: 1000Mohm
• Material: Nylon 9T
• No. of Mating Cycles: 500
• Operating Temperature Max: 105°C
• Operating Temperature Min: -40°C
• Termination Method: Solder
• Voltage Rating VAC: 30V
• Withstand Voltage: 500V
