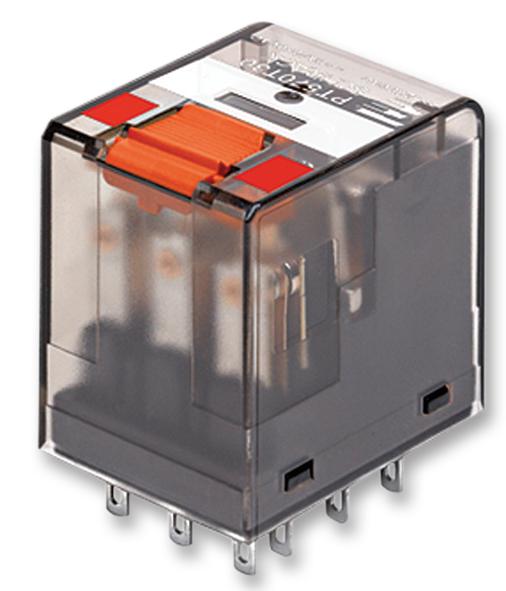

AMP - TE CONNECTIVITY - 8-1419132-9 - General Purpose Relay, PT Series, Power, Non Latching, 4PDT, 115 VAC, 6 A
- Contact Configuration: 4PDT
- Coil Voltage: 115VAC
- Contact Current: 6A
- Product Range: PT Series
- Relay Mounting: Socket
- Coil Type: Non Latching
- Contact Voltage VAC: 240VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: -
- Contact Material: Silver Nickel
- Coil Resistance: 4.845kohm
- SVHC: No SVHC (27-Jun-2018)
- Coil Voltage VAC Nom: 115V
- Contact Current Max: 6A
- Contact Voltage AC Nom: 240V
- External Depth: 28mm
- External Height: 29mm
- External Length / Height: 29mm
- External Width: 22.5mm
- Nom Operating Power: 1VA
- Relay Type: Power
