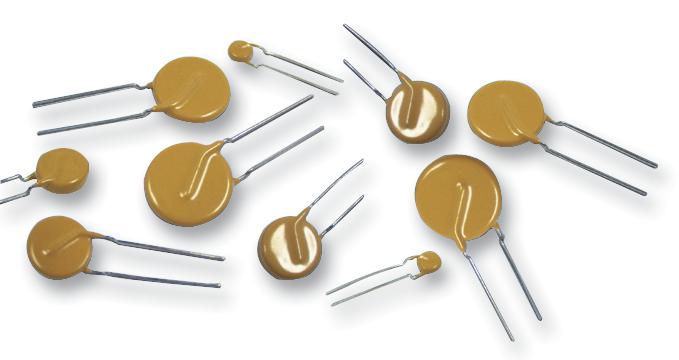

820423211 Varistor HIGHSURGE 20mm 320VRMS Wurth Elektronik

WURTH ELEKTRONIKSKU:820423211 Bestelcode:1636426

Prijs:
Actie prijs€2,71

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (350 units)

Documenten en downloads

Omschrijving

WURTH ELEKTRONIK - 820423211 - TVS Varistor, 320 V, 418 V, WE-VD, 842 V, Disc 20mm, Metal Oxide Varistor (MOV)

  • Voltage Rating VAC: 320V
  • Voltage Rating V DC: 418V
  • Product Range: WE-VD Series
  • Clamping Voltage Vc Max: 842V
  • Varistor Case Style: Disc 20mm
  • Varistor Type: Metal Oxide Varistor (MOV)
  • Peak Surge Current @ 8/20µs: 10kA
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Peak Energy (10/1000uS): 382J
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Body Diameter: 20mm
  • Capacitance: 760pF
  • Clamping Voltage: 842V
  • Clamping Voltage @ 8/20µs Max: 842V
  • Operating Temperature Range: -40°C to +125°C
  • Peak Pulse Current IPP @ 8/20µs: 10000A
  • Suppressor Type: Varistor
  • Surge Current: 10kA
